Horizontal Explosion Proof 15KW Tubular Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000-50000USD
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Horizontal Length: 80M Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Vertical Length: 60M
High Light:

60M tubular drag conveyors


Horizontal Tubular Chain Conveyor


15KW Tubular Chain Conveyor

Product Description

Horizontal explosion-proof tubular drag conveyors


Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.
This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.


Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00


Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements


Tubular Conveyor Features:

  1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.
  2. Requires minimum horsepower and energy consumption.
  3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.
  4. Self feeding with most flowable materials.
  5. Gentle conveying action minimizes product attrition.
  6. May discharge at multiple points in circuit; no special airlocks are required.
  7. Operates at a minimum noise level.
  8. Easily assembled in the field.
  9. Saving cross-section Space,can be installed where other conveyor types cannot.
  10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.
  11. Wide range of sizes and materials of construction as required.


Application ranges:


Chemical, chemical fiber, fertilizer, food, pharmaceutical raw materials, dyes and other industries in solid powder, additives, catalysts, etc.

Hanrui Puzer is professional as one of the leading tubular drag conveyors manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy tubular drag conveyors at best price with us. We will offer you the greatest after-sales service and fast delivery.

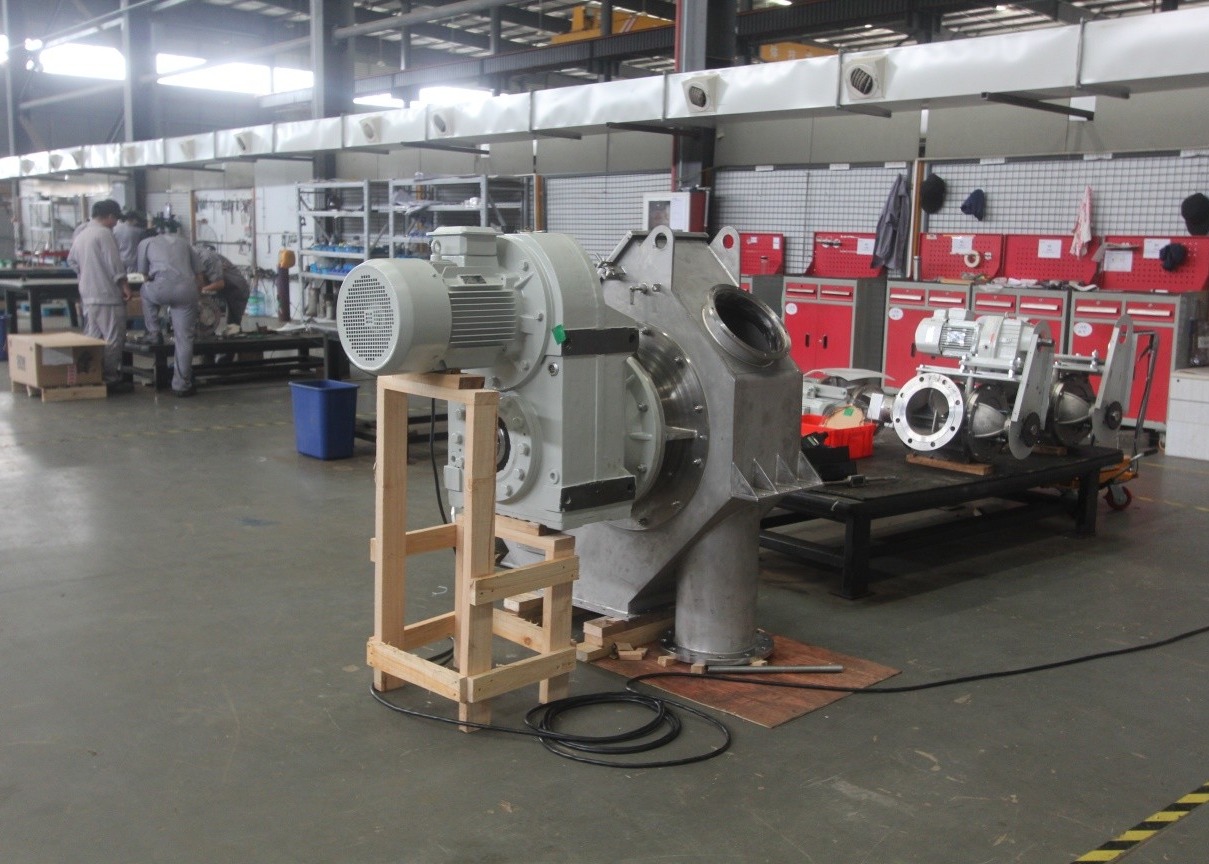

Horizontal Explosion Proof 15KW Tubular Chain Conveyor 0
