Solid Material Filling Efficiency 99% Bulk Truck Loading System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001
Model Number: HRT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film/plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 300 sets / year

Detail Information

Material: SS304, SS316, SS316L, Q235 Applicable Truck: 20ft/40ft/other
Loading Capacity: Depends On Loading Material Accessories: Tubular Chain Conveyor/dump Station Etc.
Filling Efficiency: 98%-100% Existing Case: PP, PVC
MOQ: 1 SET Pollution: No Pollution
High Light:

SS316 Bulk Truck Loading System

,

99% Bulk Truck Loading System

,

20ft bulk truck loader

Product Description

High efficiency bulk truck loading system for solid material



Types of truck loading system

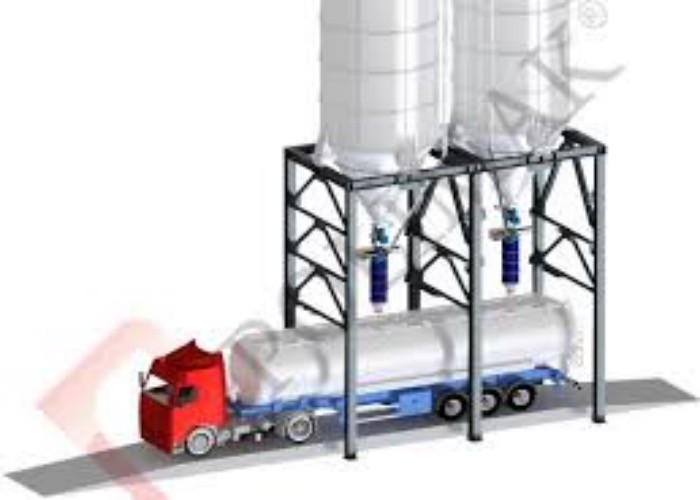

1. Level gravity loading system

This type of loading system applies to silo over 20M , no additional energy required, the filling efficiency is over 95%.

2.Pneumatic conveying loading system

This type of loading system applies to granule material loading and the silo foundation is over 1M . No special requirement of container car position. The pneumatic conveying system is integrated. Filling efficiency reaches 100%.

3. Mechnical conveying loading system

This system can contain different combanations: big bag unloading +tubular chain conveying system

dump station +tubular chain conveying system

big bag unloading +screw conveyor

dunmp station +screw conveyor .



 The bulk truck loading system is easy to operate , worker only needs to park the bulk truck on the designated location, operate automatic loading & unloading management system and input loading time and capacity through the operating screen in real .

technical parameters Model HRU
Unloading Speed depends on material
Air consumption depends on working condition
applicable material good flow ability material
Frame Material Carbon steel, 304,304L / 316L stainless steel
Power & Output 3 phase 380V 50Hz
Accessories screw conveyor, diverter valve , rotary valve etc.



Features of Hanrui's bulk truck loading system :

1. The weight can be controlled stably by the automatic loading system .

2. The loading pressure can be controlled accurately , which guarantees the filling efficiency , meanwhile , it can avoid bag bursting risk .

3. Improve loading efficiency .

4. Can reduce the storage area of warehouse and the cost of storage transfer.

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements



Hanrui Puzer is a high-tech enterprisebuilt in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is delicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.
