China Solid Conveying System manufacturer

AC110V Rotary Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN100-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Reducer Brand: SEW /Nord Etc. Bearings: NSK, SKF Etc.
Volum: Can Be Designated Applicable Industry: Sticky Material
Power: 0.55-11KW Motor Brand: Can Be Selected
Working Pressure: Less Than 70 Bar Seal Type: Oil/labyrinth/mechanical Etc.
High Light:

70bar Rotary Valve

,

AC110V Rotary Valve

,

11KW rotary valve feeders

Product Description

Detachable rotor rotary valve feeders with purge seal device and frequency converter



Rotary feeder is called as rotary valve or star shape feeder. This special equipment is applicable for unloading, packing, mixing, dust collecting, metering, rationing conveying of solid materials (powder, particles and its mixtures) conveying system. The working principle is, by driving motor and reduction gears to turn equi-divided structure impeller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of the shell. Materials can be discharged equably and continuously to the downstream unit according to the conveying system requirements.
Hanrui Rotary Feeder has been awarded 6 national patens and been listed in Shanghai high-tech achievements transformation projects.


Product features:

  • Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.
  • The shell and impeller with special structure design can convey very hard, high viscosity, high temperature, electrostatic and ultrafine materials
  • Exhaust passage and exhaust nozzle which are designed for pressure balance inside the shell can improve working efficiency and prevent accumulation of materials.
  • Outboard bearing, oil seal, labyrinth, purge gas, packing, various seal structure. Wear resistant, high temperature resistant and high pressure resistant.



Main parameters:



Working pressure LP <0.6MPa MP. 1.0∽2.0MPa HP 2.0MPa~4.0MPa Super HP 4.0∽7MPa
Intensity testing pressure 0.9MPa 3.0MPa 6.0MPa 10.5MPa
Working temp. -20℃~850℃
Main spec. DN25∽1200(1″∽48″)
Conveying capacity 100KG∽80000kg/H
Power AC 380V ,AC 220V,AC110V,DC 24V
Purge gas pressure 0.7∽6.5MPa
Flange standard ANSI B 16.5 150LB, GB, HG, SH,etc

Medium

Bulk solid material





FRQ questions:

1. Can we choose the material of the rotary valve ?

    Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

    You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3.  What is other information we need to supply before get a quotation?

    We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

    Yes , you can select motor and reducer brand according to your own requirement.

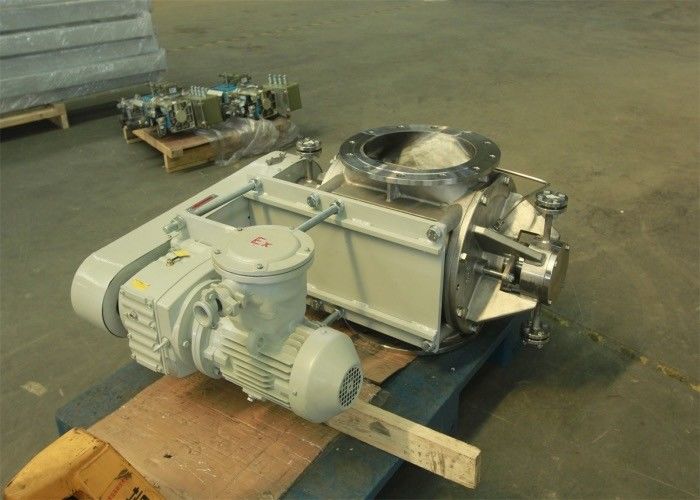

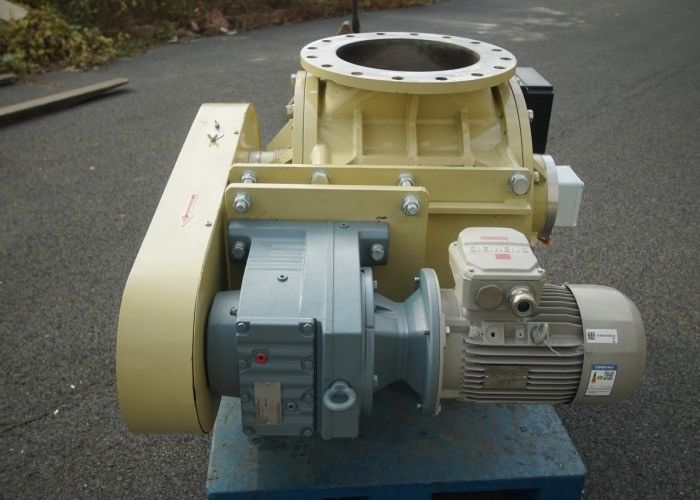

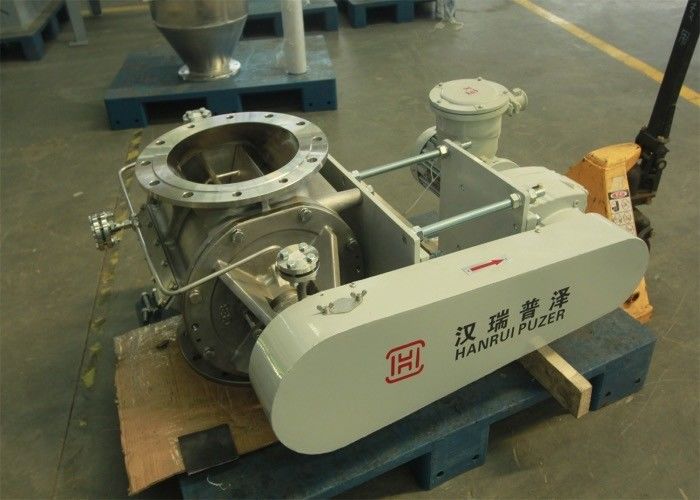

AC110V Rotary Valve 0AC110V Rotary Valve 1
