Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hanrui |
| Certification: | CE |
| Model Number: | HFT15AP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | 5000-60000USD |
| Packaging Details: | plywood |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/year |
|
Detail Information |
|||
| Filter Efficiency: | 99.99% | Working Temperature: | Less Than 204 ℃ |
|---|---|---|---|
| Flaw Resistance: | 25kg/m³ | Other: | Resistance Acid& Alkali |
| Material: | SS304, SS316, SS316L , Q235 | Equipment Resistance: | ≤1200Pa |
| Highlight: | 3KW Industrial Dust Collector,1200Pa industrial dust collection system,SS304 industrial dust collection system |
||
Product Description
resistance to moisture , non bond collectors for industrial dust collecting

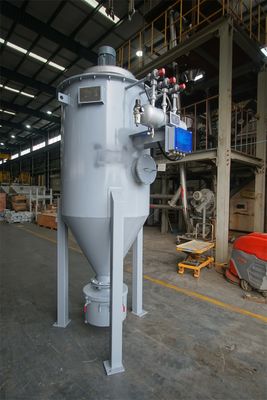

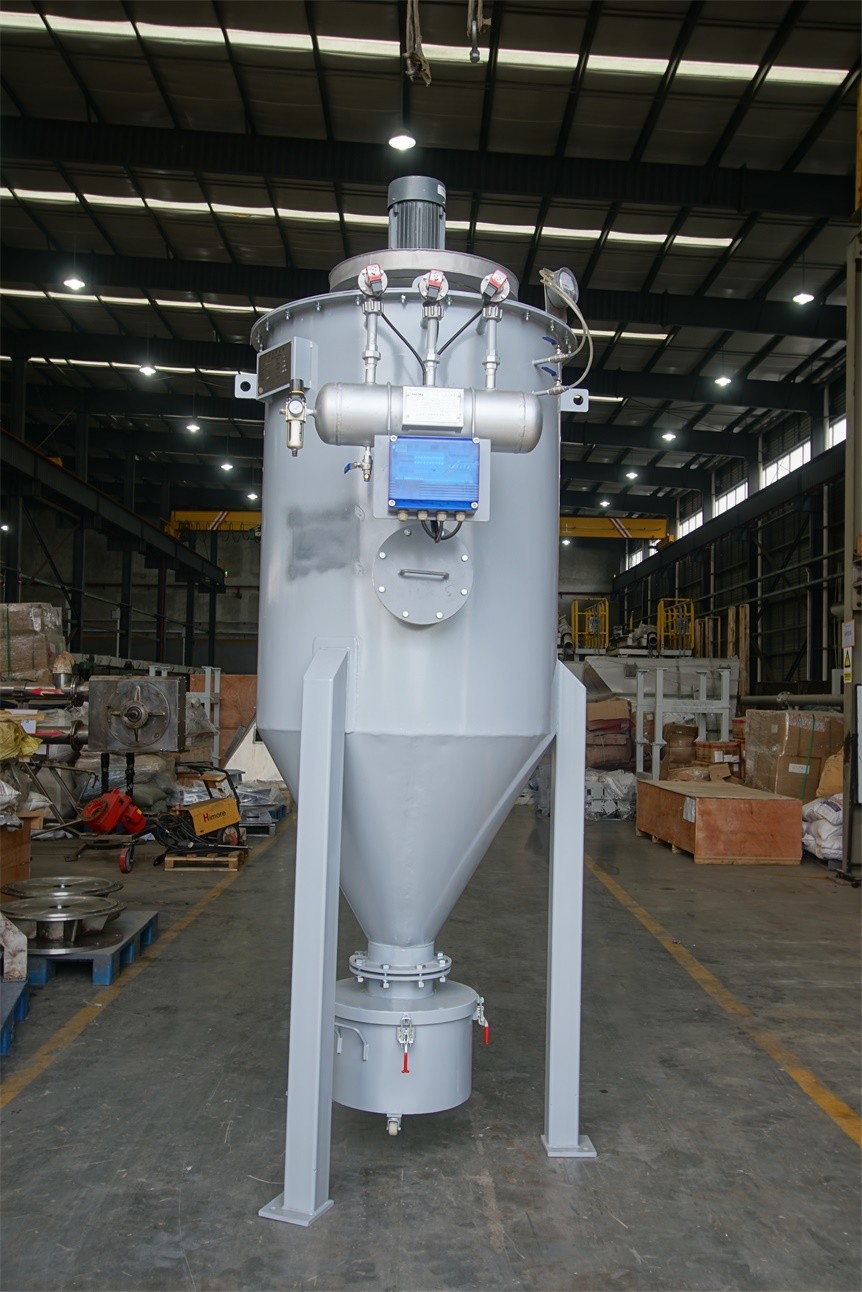

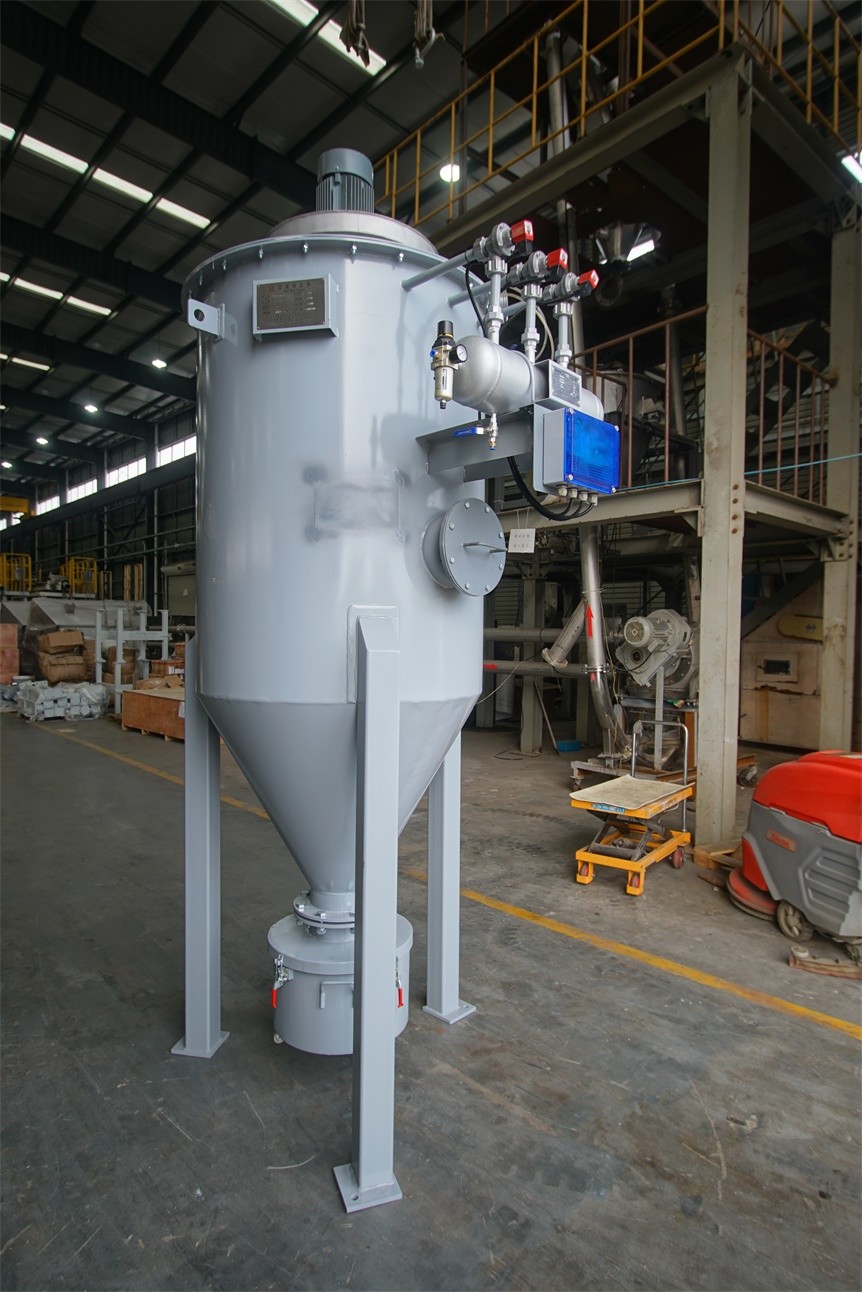

A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.
We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.
The offered range of these Dust Extraction System can be availed from us at comprehensive prices.
Technical parameters
| Model Parameters | HFD-32 | HFD-48 | HFD-64 | HFD-80 | HFD-96 | HFD-112 |
| Air Volume(m3·h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 |
| Filter Area(m2) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filter Wind Speed(m/min) | 1.0—1.5 | 1.0—1.5 | 1.0—1.5 | 1.1—1.7 | 1.2—1.7 | 1.2—1.8 |
| Material | can be selected | can be selected | can be selected | can be selected | can be selected | can be selected |
| Entrance Gas Temperature(℃) | ≤120 | |||||
| Equipment Resistance(Pa) | ≤1200 | |||||
| Soot Cleaning With Air Pressure(MPa) | 0.4~0.6 | |||||
| No.of Pulse Valve | 4 | 6 | 8 | 10 | 12 | 14 |
| Blower Motor Power(KW) | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 |
Product advantages
1. High filter efficiency of bag dust collector
2. Integrated construction design and easy installation.
3. 2-3 times filtration area than filter bags.
4. Impulse back cleaning, mechanical shake cleaning and acoustic wave cleaning can be used in dust collector. The impulse back cleaning filter components: impulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass etc.
Product application
Bag filter is widely used to cement, power plant, casting plant, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use.
Hanrui Puzer is professional as one of the leading cartridge filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy cartridge filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery.
