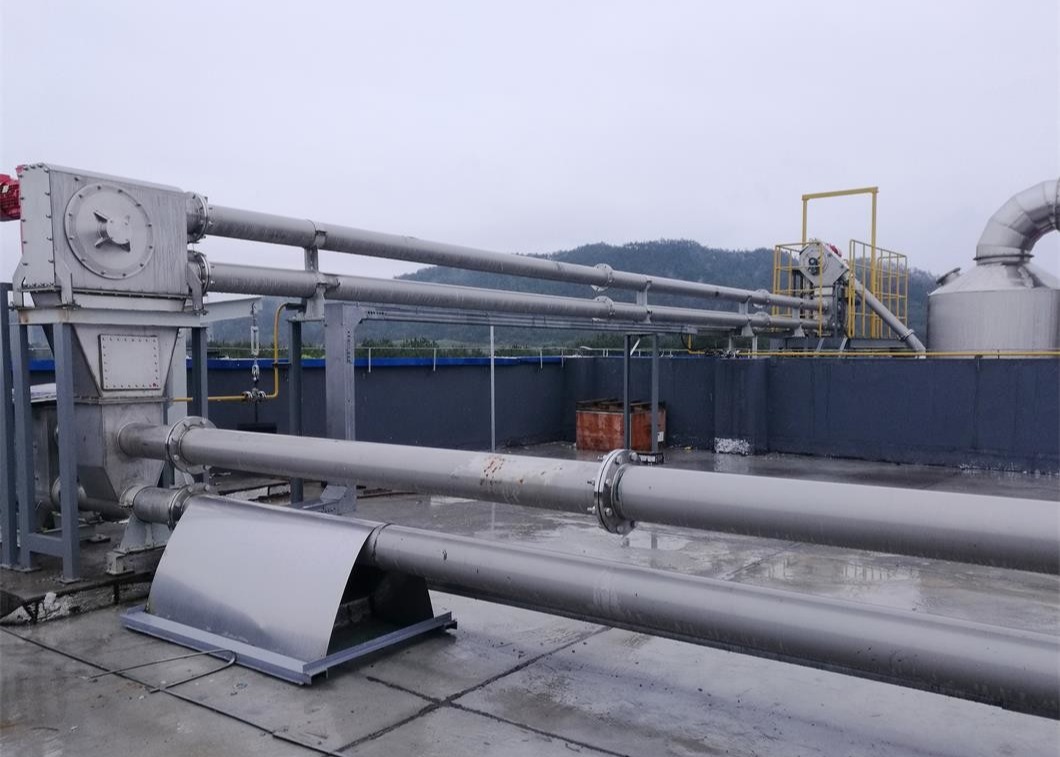

Inner Surface Polished 300m³/h Tubular Drag Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Installation: Vertical/horizontal
Dust Leakage: Zero Leakage Disc Material: PA6/PA66
High Light:

300m³/h Tubular Chain Conveyor

,

SS304 tubular drag chain conveyor

,

15KW tubular drag chain conveyor

Product Description

inner surface polished tubular drag chain conveyor for medicine material conveying



Hanrui Puzer is a scientific and technology enterprise integrating with design & research, manufacturing, sales, installation & debugging and service. We mainly serve to the petroleum chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environment protection, coal gasification industries.

Tubular Drag Conveyors, sometimes called tubular drag chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.



Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:



Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Features :

• Reduce labor intensity

• Small amount of residual

• Wide applicability

• Can be equipped with lifting mechanism to make it suitable for various bags

• Good airtightness, avoid dust leakage

Low energy consumption and reliable performance

Various accessories can be selected : dust filter , automatic waste bag compressor, discharge valve, sound and light alarm, PLC control system, etc .



About us



Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.



FRQ questions:

1. Can we choose the material of the tubular conveyor ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
