China Solid Conveying System manufacturer

380V 50HZ Q235 Big Bag Unloader With Flowrate Control Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HGC1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1500 sets/year

Detail Information

Material: SS304, SS316, Q235 Max Capacity: 12T/H
Accessories: Dust Collector/rotary Valve Etc. Applicable: Chemical/rubber/food Etc.
Color Paint: Can Be Selected Loading Bag: 500kg/1000kg/1500kg.
MOQ: 1 Set Working Voltage: 380V, 3P, 50HZ
High Light:

ANSI bulk bag unloading frame

,

50HZ Big Bag Unloader

,

Hanrui Big Bag Unloader

Product Description

Ton bag opener with flowrate control valve and vibrancy equipment

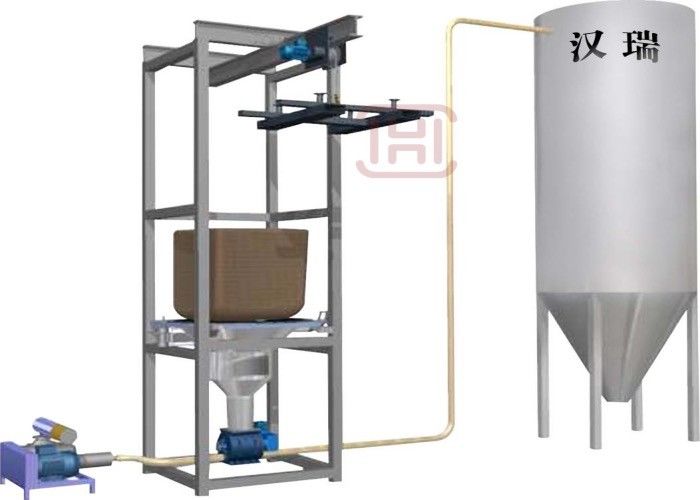

Big bag emptying systems elevates ton bag to material inlet, breaking the ton bag outlet by manual, then opens flowrate control valve with vibrancy equipment to promote unloading powder or pellets into the lower hopper by gravity.It can be equipped with lifting mechanism to make it suitable for various bags. It can unpack any material bags (such as plastics , mixing agents, sewage treatment clarifiers, cement and other dry powders, granular materials, powder mixtures, flakes etc.)



Big Bag Unloader Function and Features:

Simple and reliable structure;

Little power consumption;

No damage and leakage for material;

Convenient operation;

Accessories for connection of dust collector;

Accessories for connection of discharge valve.



Model HGC1AP
Max. slitting capacity 12bag/hr
Loading bag weight 500/1000/1500KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width Depending on your condition
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet





380V 50HZ Q235 Big Bag Unloader With Flowrate Control Valve 0



Advantages :

•Reduce labor intensity

•Small amount of residual

•Wide applicability

•Can be equipped with lifting mechanism to make it suitable for various bags

•Good airtightness, avoid dust leakage

Low energy consumption and reliable performance

Various accessories can be selected : dust filter ,  discharge valve, sound and light alarm, PLC control system, etc .
