China Solid Conveying System manufacturer

Central Dust Suction Manual SS304 Bag Dump Stations

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001/iso14001
Model Number: HGB8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/year

Detail Information

Material: SS304, SS316, Q235 Etc. Accessories: Dust Collector/bag Cutting Machine Etc.
Structure: Welded Steel Struction Certification: CE/ISO9001/ISO14001
Maxim Capacity: Up To 20T Electrical Equipment: Simens, Schneider, Nord Etc.
Weight Range: 0.1-70KG/bag Working Voltage: 380V, 3P
High Light:

SS304 Bag Dump Stations

,

380V Bag Dump Stations

,

SS304 manual bag opener

Product Description

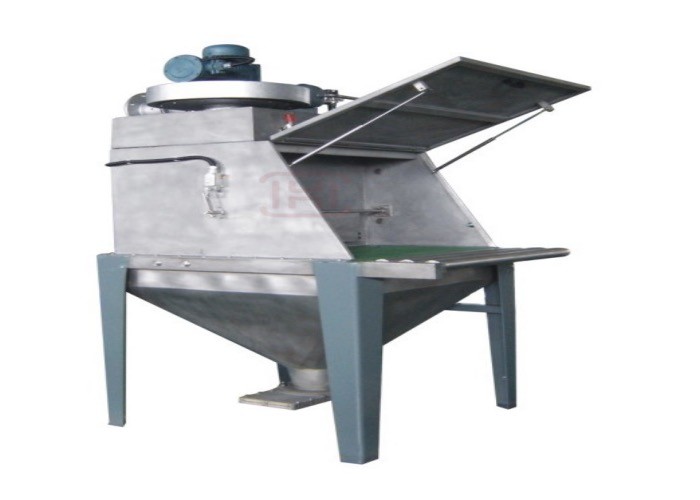

SS304 manual bag opener equipped with central dust suction device





Hanrui Puzer is professional as one of the leading semi automatic bag dump station manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy semi automatic bag dump station at best price with us. We will offer you the greatest after-sales service and fast delivery.



working process:

The operator pusts the bag on the support and pushes it into the dump station. Then he slits the bag with a vertical cut and shakes it until empty. The bag content may be discharged through a hopper into the feeding device. The built-in fan can recycle the dusty gas caused during the course of bag unpacking. Automatic pulse back blow dust collector will clear the dust at a regular time. The empty bag can be sent to the optional waste bag compactor to ensure the site in clean environment.



Model HGA1-120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width Depending on your condition
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet



Features:

Welded steel construction.

The construction is compact and beautiful in design.

Available with de-dusting filter equipment or centralized dust suction.

Hoppers with different capacity volumes.

The height of supporting legs can be adjusted.

Accessories for connection of waste Bag Compactor.

Accessories for connection of automatic bag cutting mechanism.



Central Dust Suction Manual SS304 Bag Dump Stations 0

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
