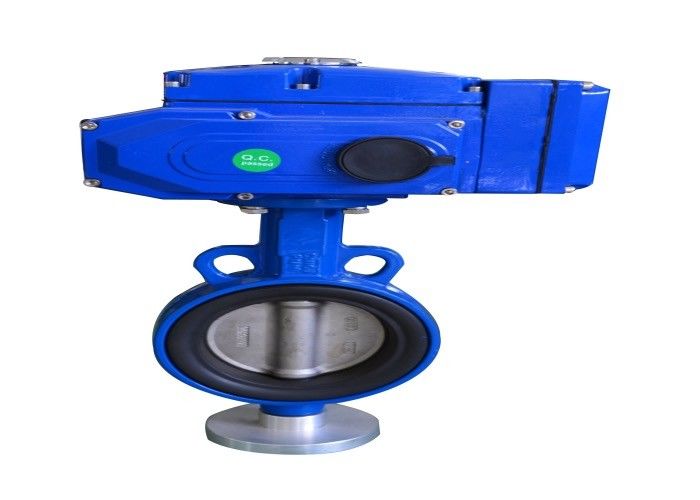

SS316 Electric Butterfly Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 300-5000USD
Packaging Details: ply wood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets /year

Detail Information

Material: SS304, SS316, SS316L, Q235, Cast Iron Working Pressure: As The Product
Driving Method: Manual, Pneumatic, Electric Etc. Applicable Media: Solid Material ,gas, Liquid
Working Temperature: -20-200℃/≤500℃
High Light:

PN16 Butterfly Valve

,

SS316 Electric Butterfly Valve

,

PN10 Electric Butterfly Valve

Product Description

High quality butterfly valve with electric actuator wafer connection

Size Range: 2"~40"(DN50~DN1000)

Pressure: PN10, Class125

Body Materials: SS304, SS316, SS316L, Q235, cast iron

Seat Materials: NBR, EPDM, FPM

Disc Materials: SS304, SS316, SS316L, Q235, cast iron

Stem Materials: SS416, SS304, SS316

End Connection: flange

Operate: Manual, Worm gear, Pneumatic, Electric-Motorized

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

UPVC/CPVC/PPR butterfly valve Features

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Low Friction Body Seat

Zero Leakage

Standard Test:

Main perfirmance parameters:

Norminal Pressure Norminal Diameter TestingPressure
(MPa)
Suitable Temperature Suitable Medium Actuation Ways
PN(MPa) DN(mm) Shell Seal -20℃-135℃

Fresh water,Sewage,Sea water,Air,Vapor,

Food,Medicine,Oils,

Acids,Alkalis,ect

Manual, Worm-gear, Electric and Pneumatic,
actuator
1.0 DN40-DN1000 1.5 1.1
1.6 2.4 1.76



Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Quality Control:

1.We have more than 150 body moulds of butterfly vavle for you to choose!

2.Each vavle is taken for two times test pressure before leave factory!

3.Every valve has 24 months guarantee period.

4.MOQ:1 Piece,it is up to which size clients

What 's the Application of Plastic butterfly valve

UPVC/CPVC/PPR Butterfly Valve Application:

1.Water Treatment Plant

2.Breweries

3.Drilling Rigs

4.Heating & Air Conditioning

5.Paper Industry

6.Chemical Industry

7.Gas Plant

8.Pneumatic Conveyors

9.Sugar Industry

10.Waste Effluent Treatment Plant

11.Cooling Water Circulation

12.Compressed Air
