China Solid Conveying System manufacturer

SS304 Automatic Bag Slitting Machine With Dust Collectors

Product Details:
Place of Origin: Shanghai,China
Brand Name: Hanrui Puzer
Certification: CE, ISO9001
Model Number: HGA50-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film/ply wood
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 400 sets /year

Detail Information

Material: SS304, SS316L, SS316, WCB Etc. Accessories: Screw Conveyor /dust Collector/Tubular Chain Conveyor
Capacity: 30-1800bags/H Weight/bag: >1000kg
Appliable Field: Chemical/pharmacy/food Etc. Working Voltage: 380V, 3P, 50HZ
Labor Needed: Less Labor Main Size: Depends On Your Requirement
High Light:

SS304 Automatic Bag Slitting Machine

,

0.1um Automatic Bag Slitting Machine

,

1800 bags/H auto slitter

Product Description

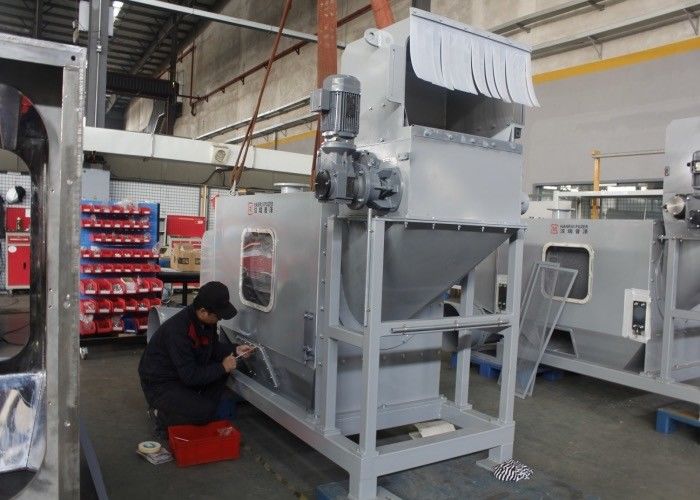

Automatic slitter with dust collectors for big bags opening connecting with hopper



It is a high-tech equipment to realize the automation, intellectualization and automatic unpacking and feeding of bagged bulk materials without dust leakage, reaching the international advanced level. It can replace people with machines, save energy and increase efficiency, improve production capacity, promote industrial upgrading, avoid the health hazards of manual unpacking, and create a green, safe and comfortable working environment. The full-automatic unpacker was listed in the 2009 innovation fund project of the Ministry of science and technology, four invention patents and eight utility model patents.



Main parameters

◆ Unpacking capacity: 2000 bags/ hour (maximum).

◆ Wide range of unpacking: 0.1kg ~ 70kg/ bags

◆ Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.

◆ Material loss rate: 1/1000 ~ 1/10000

◆ Dust emission concentration: 1mg/m3~30mg/m3

◆ Dust collection efficiency: 99.9% ~99.999%

◆ Minimum dust particle size: 0.1um





Model HGA1-120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width Depending on your condition
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
