China Solid Conveying System manufacturer

ISO 9001 40FT SS316 Container Bulk Loading System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film/plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 300 sets / year

Detail Information

Material: SS304, SS316, SS316L, Q235 Applicable Truck: 20ft/40ft/other
Loading Capacity: Depends On Loading Material Accessories: Tubular Chain Conveyor/dump Station Etc.
Filling Efficiency: 98%-100%
High Light:

ISO 9001 bulk truck loader

,

SS316 Container Bulk Loading System

,

40ft Container Bulk Loading System

Product Description

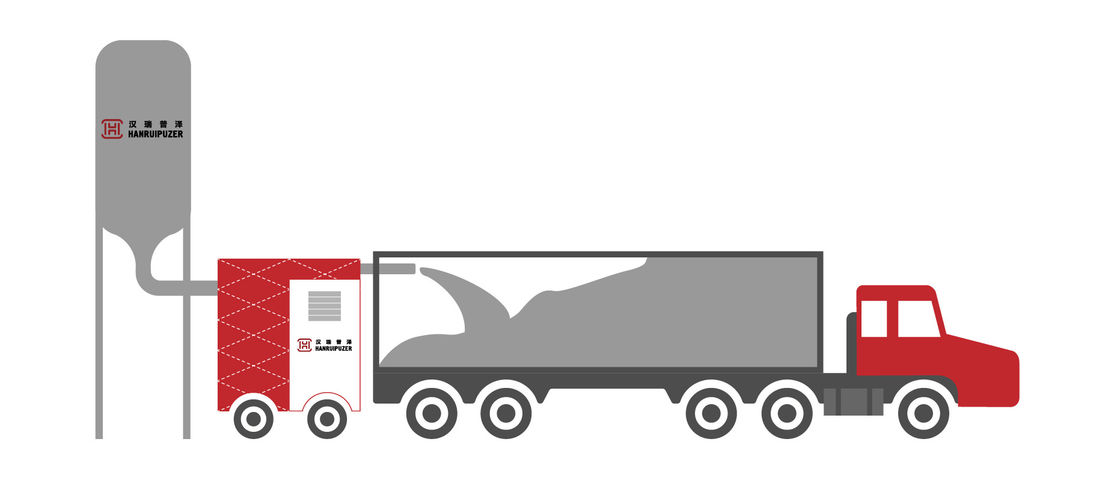

Container loading system for bulk materials/Fixed value loading system of powder tank car



Container loading mainly includes horizontal gravity loading, air transportation loading, screw transportation and belt transportation. According to the market demand, Hanrui Puzer has developed two kinds of automatic loading forms: pneumatic conveying and mechanical conveying. The container automatic loading and unloading system is fast and simple in operation. Employees only need to park the container car at the designated location, use the automatic loading and unloading management system, input the loading amount, and then the container can be loaded automatically. In the process, the loading amount and loading time can be monitored in real time through the operation screen. Compared with the traditional tank car, the container loading efficiency and filling rate are higher, and the dust leakage is zero, which will not cause pollution to the surrounding environment. The automatic loading system has good weight stability, precise loading pressure control, ensuring loading efficiency and avoiding bag bursting risk, effectively improving loading and unloading efficiency, reducing the storage cost of warehouse area and transfer.



Features of Hanrui's bulk truck loading system :

1. The weight can be controlled stably by the automatic loading system .

2. The loading pressure can be controlled accurately , which guarantees the filling efficiency , meanwhile , it can avoid bag bursting risk .

3. Improve loading efficiency .

4. Can reduce the storage area of warehouse and the cost of storage transfer.



Types of truck loading system

1. Level gravity loading system

 This type of loading system applies to silo over 20M , no additional energy required, the filling efficiency is over 95%.

2. Pneumatic conveying loading system

This type of loading system applies  to granule material loading and the silo foundation is over 1M . No special requirement of container car position. The pneumatic conveying system is integrated. Filling efficiency reaches 100%.

3. Mechnical conveying loading system

This system can contain different combanations: big bag unloading +tubular chain conveying system

                                                                              dump station +tubular chain conveying system

                                                                               big bag unloading +screw conveyor

                                                                               dunmp station +screw conveyor .

Hanrui Puzer is a high-tech enterprisebuilt in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is delicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.ISO 9001 40FT SS316 Container Bulk Loading System 0
