Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hanrui |
Certification: | CE |
Model Number: | HTC80-400 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | 5000-50000USD |
Packaging Details: | stretch film |
Delivery Time: | 4-8 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 600sets/year |
Detail Information |
|||
Material: | SS304, SS316, SS316L, Q235 | Capacity: | Less Than 300m³/h |
---|---|---|---|
Horizontal Length: | 80M | Accessories: | Rotary Valve,slide Gate Valve Etc. |
Single Power: | Less Than 15KW | Vertical Length: | 60M |
High Light: | 1.25m3/h Tubular Chain Conveyor,0.75kw Tubular Chain Conveyor,DN100 chain conveyor system |
Product Description

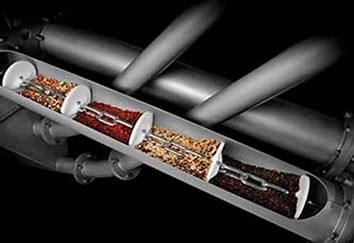

Horizontal explosion-proof tubular drag conveyors
The Tubular Chain Conveyor system includes many accessories such as Brush Assembly or Chain Knockers for cleaning of the chain, Drop Bottom or Slide Gate Valves for immediate discharge of the product, or a Turn Station which replaces 90° elbows to reduce wear and tear on the discs & chain. The Tubular Chain Conveyor is the best solution for material handling applications.
Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.
This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.
Main technical parameters for DN100 tubular chain conveyor:
Q(m³/h) | 1.25 | 2.00 | 2.65 | 4.00 | 5.50 | 7.00 | 8.75 |
P(KW) | 0.75 | 1.10 | 1.50 | 2.20 | 3.00 | 4.00 | 4.00 |
V(m/s) | 0.06 | 0.09 | 0.13 | 0.19 | 0.26 | 0.33 | 0.42 |
n(1/min) | 3.20 | 5.40 | 7.30 | 11.00 | 15.00 | 19.00 | 4.00 |
Necessary information when order:
1. Location: indoor or outdoor
2. Kindly provide the installment position and the conveying distance
3. Capacity(KG/H), and remark the ration conveying or variable conveying
4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics
5. Flange standard and flange dimension
6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
Tubular Conveyor Features:
Application ranges:
Chemical, chemical fiber, fertilizer, food, pharmaceutical raw materials, dyes and other industries in solid powder, additives, catalysts, etc.
Hanrui Puzer is professional as one of the leading tubular drag conveyors manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy tubular drag conveyors at best price with us. We will offer you the greatest after-sales service and fast delivery.
