Swing Plate Q235 Hydraulic Multiplier Manual Diverter Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Main Specification: 2”~40”
Location: Outdoor/indoor Drive Type: Manual
High Light:

Swing Plate Manual Diverter Valve

,

Q235 Manual Diverter Valve

,

Q235 manual hydraulic multiplier valve

Product Description

Swing plate type manual driving diverter Valve with 90° pipe included angle



The flap steering valve uses a swinging flap to transfer material from one pipe to another. The flap diverter valve is installed in the wind transmission pipeline which needs to switch materials to different production lines. Brief introduction: the two-way movable cover diverter valve meets the requirements of pneumatic conveying equipment to change powder, debris or particles from one discharge point to another, with the lowest pressure drop and high sealing efficiency.



Main technical data sheet:

Working pressure  ATM / LP(0.1MPa) / MP (0.35MPa)/HP(0.6MPa)
Driving method pneumatic driving /manual driving/pneumatic driving with manual or motor
Working temperature  -20℃-200℃/ ≤500℃
Applicable solid materials(powder,particles,powders,powder mixttures, flakes and  etc.)

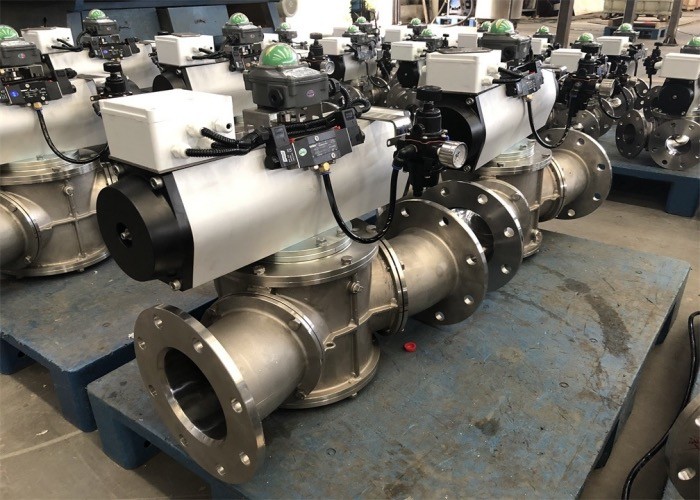

Swing Plate Q235 Hydraulic Multiplier Manual Diverter Valve 0

Swing Plate Q235 Hydraulic Multiplier Manual Diverter Valve 1



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.



FRQ questions:

1. Can we choose the material of the diverter valve ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
