China Solid Conveying System manufacturer

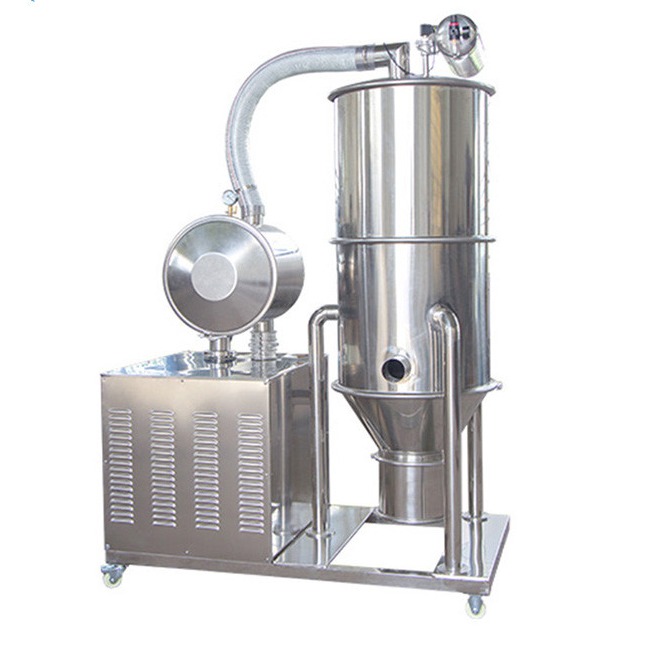

Vacuum Dilute Phase Pneumatic Conveying System 10m/S

Product Details:
Place of Origin: China
Brand Name: hanrui
Certification: CE
Model Number: DN125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: ply wood/stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets /year

Detail Information

Main Size: DN120-400 Conveying Type: Dilute/dense Phase Conveying
Working Voltage: 380V, 400V, 690V Etc. Conveying Speed: 1-10m/s
Conveying Pressure: 0.1-0.7MPa Max Capacity: 150T/H
SLR: 3-15kg/kg Material: Can Be Selected
High Light:

Vacuum Dilute Phase Pneumatic Conveying System

,

Dilute Phase Vacuum Conveying System

,

10m/S Pneumatic Feeding System

Product Description

Dilute Phase Pneumatic Conveying System



This system generally uses roots blowers providing air up to 0.1Mpa to conveying materials through a pipeline to the destination where the air and product are separated by a filter or other system. Usually a rotary valve or venturi used as feeding device. he material in pipes takes on suspended state according to material properties, different air velocity may be controlled to realize optimum conveying state.

The batch conveying and continuous conveying can be met by this type of conveying system, the conveying can be continued even if unexpected situation occured.

The feature of this low velocity, anti-plugged and dust free, and several kinds of materials can be conveyed by one pneumatic conveying system.



Specifications Description
conveying speed 2-10m/s
conveying distance Max:1200m
Operation pressure 0.1-0.7MPa
SLR 15-40kg/kg
Pipe material SS304, Q235,aluminum alloy pipe etc.
Feeding and continuous conveying double blow tankcontinuous conveying, high pressure rotary feeder continuous conveying , single blow tank batch conveying



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.



Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways

Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.
