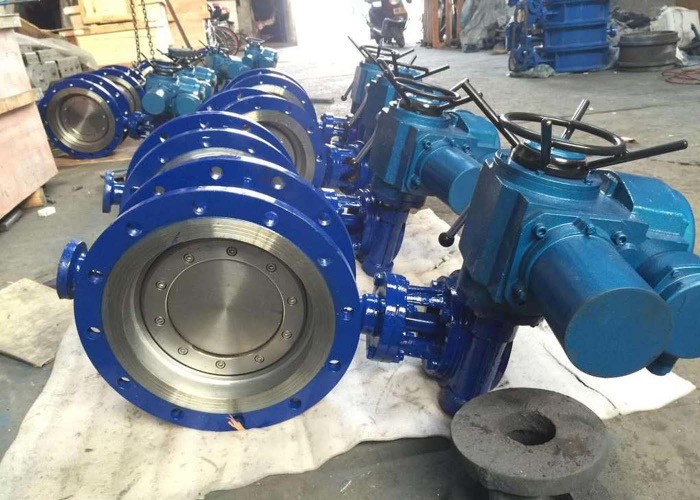

DN100 Butterfly Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: ply wood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets /year

Detail Information

Material: SS304, SS316, SS316L, Q235 Working Pressure: As The Product
Driving Method: Manual, Pneumatic, Electric Etc. Applicable Media: Solid Material ,gas, Liquid
Working Temperature: -20-200℃/≤500℃ Package Type: Stretch Film /plywood
MOQ: 1 PIECE End Connection: Wafer Connection
Highlight:

SS304 Butterfly Valve

,

PN10 Butterfly Valve

,

DN100 Butterfly Valve

Product Description

DN100 PN10 SS304 high quality butterfly valve with manual wheel

Size Range: 2"~40"(DN50~DN1000)

Pressure: PN10, Class125

Body Materials: UPVC,FRPP,ABS,CPVC,PE

Seat Materials: NBR, EPDM, FPM

Disc Materials: UPVC,FRPP,ABS,CPVC,PE

Stem Materials: SS416, SS304, SS316

End Connection: Wafer

Operate: Manual, Worm gear, Pneumatic, Electric-Motorized

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

UPVC/CPVC/PPR butterfly valve Features

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Low Friction Body Seat

Zero Leakage

Main perfirmance parameters:

Norminal Pressure Norminal Diameter TestingPressure
(MPa)
Suitable Temperature Suitable Medium Actuation Ways
PN(MPa) DN(mm) Shell Seal -20℃-135℃

Fresh water,Sewage,Sea water,Air,Vapor,

Food,Medicine,Oils,

Acids,Alkalis,ect

Manual, Worm-gear, Electric and Pneumatic,
actuator
1.0 DN40-DN1000 1.5 1.1
1.6 2.4 1.76



Product application

This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.

Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.

Standard Test:

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.
