China Solid Conveying System manufacturer

6.5Mpa Star Feeder

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Main Type: HRCA Type Maxim Pressure: 6.5Mpa
Installation Location: Indoor/outdoor Applicable Industry: Food/medical Industry
Max Volum: 600L Seal Type: Oil/lip/mechanical/labyrinth Etc.
Rotating Speed: Less Than 30 Casing Material: SS304/Q235/SS316L Etc.
Highlight:

6.5Mpa Star Feeder

,

600L Star Feeder

,

SS304 rotary valve feeders

Product Description

High pressure rotary valve used for coal feed and dust discharging in coal gasification





Product description

Rotary feeder is called as rotary valve or star shape feeder. This special equipment is applicable for unloading, packing, mixing, dust collecting, metering, rationing conveying of solid materials (powder, particles and its mixtures) conveying system. The working principle is, by driving motor and reduction gears to turn equi-divided structure impeller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of the shell. Materials can be discharged equably and continuously to the downstream unit according to the conveying system requirements.

Hanrui Rotary Feeder has been awarded 6 national patens and been listed in Shanghai high-tech achievements transformation projects.

alve is called as rotary feeder or star shape feeder. This special equipment is applicable for unloading , packing , mixing, dedusting, metering, rotioning conveying of solid materials(powder, particles and its mixtures) conveying system. The working principle is by driving motor and reduction gears to turm equi-divided sructure impreller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of shell. Materials can be dischaged equably and continuously to the downstream unit according to the conveying system requirements.

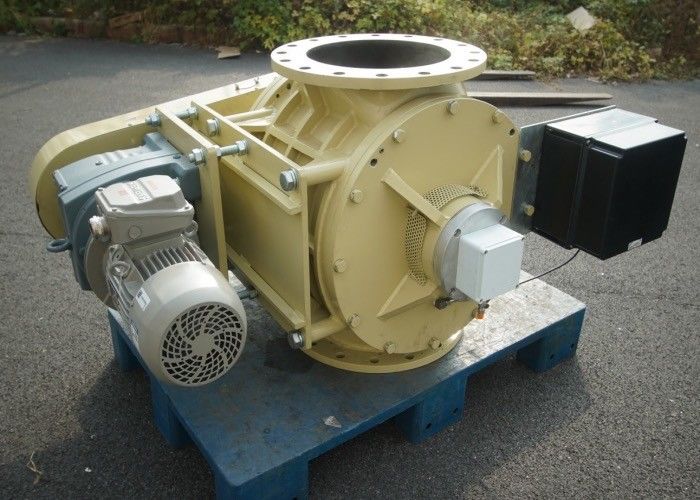

       6.5Mpa Star Feeder 0



Product advantages

1.Good sealing of pneumatic conveying type rotary valve

2.This cleaning type of  rotating feed valve has special designing of shell rotor.

3.The rotor of the valve can be cleaned automatically.

4.This type of rotary feeder has high working efficiency and has no material accumulation.

5.Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.



Main parameters

working temperature  -20℃-200℃/ ≤450℃/ ≤720℃
main size  DN25-DN1000
main type  SELF-CLEANING
main materials SS304, SS304L, SS316, SS316L,SS836L,WCB,QT500 etc.
flange conn. Rating ANSI16.5 150LB,GB, HG, SH or designated by client
Appliable Medium Solid materials(powder, particles, powders/ particles mixtures, flakes etc. )

Why choose us

1. Hanrui can supply you better solutions for small bag emptying

2. Our solution can achieve automation, intelligent, standardized production

3. Hanrui can provide complete sets of automatic and intelligent production equipment.
