China Solid Conveying System manufacturer

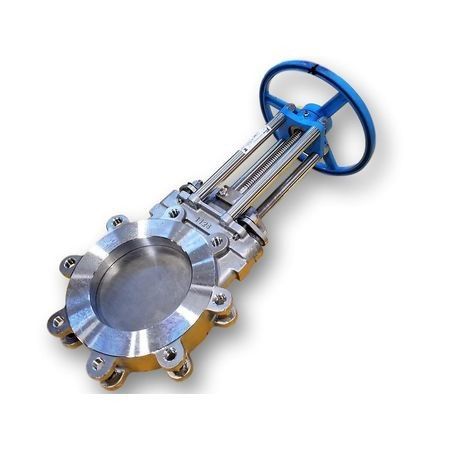

Elastic Sealing Structure Flow Guidance 0.1MPa Slide Valves

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HHA150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000SETS/YEAR

Detail Information

Material: SS304, SS316, Q235 Main Size: DN50-DN1000
Working Temperature: -20℃~500℃ Connection Methord: Wafer/flange Type
Pressure Range: ATM-0.65MPa Location: Indoor/outdoor
MOQ: 1 Set Seal Type: Elastic Sealing Structure
Highlight:

SS304 slide gate valves

,

DN50 Slide Valves

,

0.1MPa Slide Valves

Product Description

flow guidance slide valve installed at silos and hoppers





Standard Test:

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.



Product application

This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.



Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



Mian Technical Data Sheet

working pressure  ATM/LP--ATM/0.1MPA     MP--0.35MPa
Working temperature -20℃-200℃,≤500℃
Main size  DN50-DN1000MM(2''-40'')
Main materials SS304, SS304L,SS316, SS316L, WCB etc.
Connection Methord Wafer type / Flange type
Applicable medium Solid materials(Powder, particles, Powders/particles mixtures etc. )





Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.



Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.
  6. We can follow request of consumer to complete modification works. Increase process capacity and retain originally space. Offer optimum design, equipment and intelligence detecting and control system.



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
