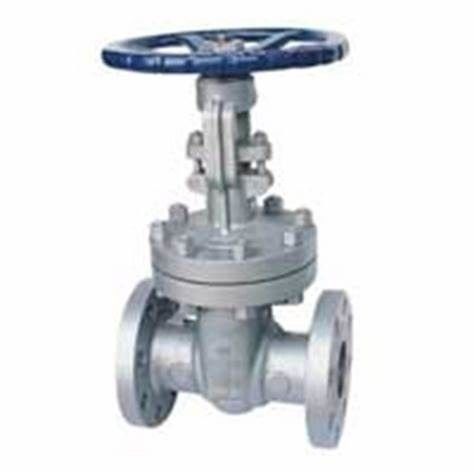

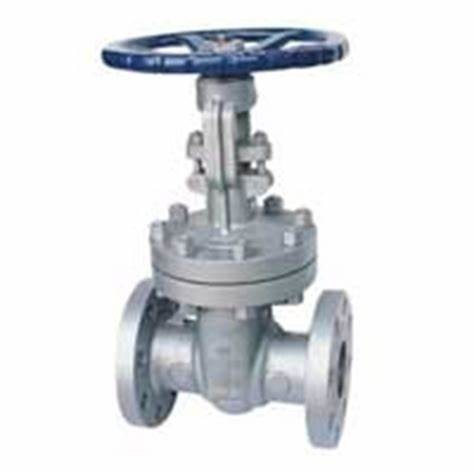

150LB Manual Slide Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HHA150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000SETS/YEAR

Detail Information

Material: SS304, SS316, Q235 Main Size: DN50-DN1000
Working Temperature: -20℃~500℃ Connection Methord: Wafer/flange Type
Location: Indoor/outdoor Leakage: Zero Leakage
Drive Type: Manual/pneumatic/electric Packaging: Plywood /stretch Film
Highlight:

150LB Manual Slide Valve

,

SS316 manual slide valve

,

DN50 manual slide gate valve

Product Description

slide gate valve can fit for solid material handling system

Product application

This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.

Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.

Hanrui Puzer is professional as one of the leading slide gate valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy slide gate valve at best price with us. We will offer you the greatest after-sales service and fast delivery.

Product details

Working pressure of slide gate valve: ATM/0.1MPA~0.35MPA

Working temperature of slide gate valve: -20℃~500℃

Main size: DN100-1000

Main material: SS304, SS304L, SS316, SS316L, WCB and etc.

Driving model: manual, pneumatic or electrical

Connection model: wafer type and flange type

Flange Connection Rating: ANSI B16.5 150LB, GB, HG, SH or designated by client



Mian Technical Data Sheet

working pressure  ATM/LP--ATM/0.1MPA     MP--0.35MPa
Working temperature -20℃-200℃,≤500℃
Main size  DN50-DN1000MM(2''-40'')
Main materials SS304, SS304L,SS316, SS316L, WCB etc.
Connection Methord Wafer type / Flange type
Applicable medium Solid materials(Powder, particles, Powders/particles mixtures etc. )





Standard Test:

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
