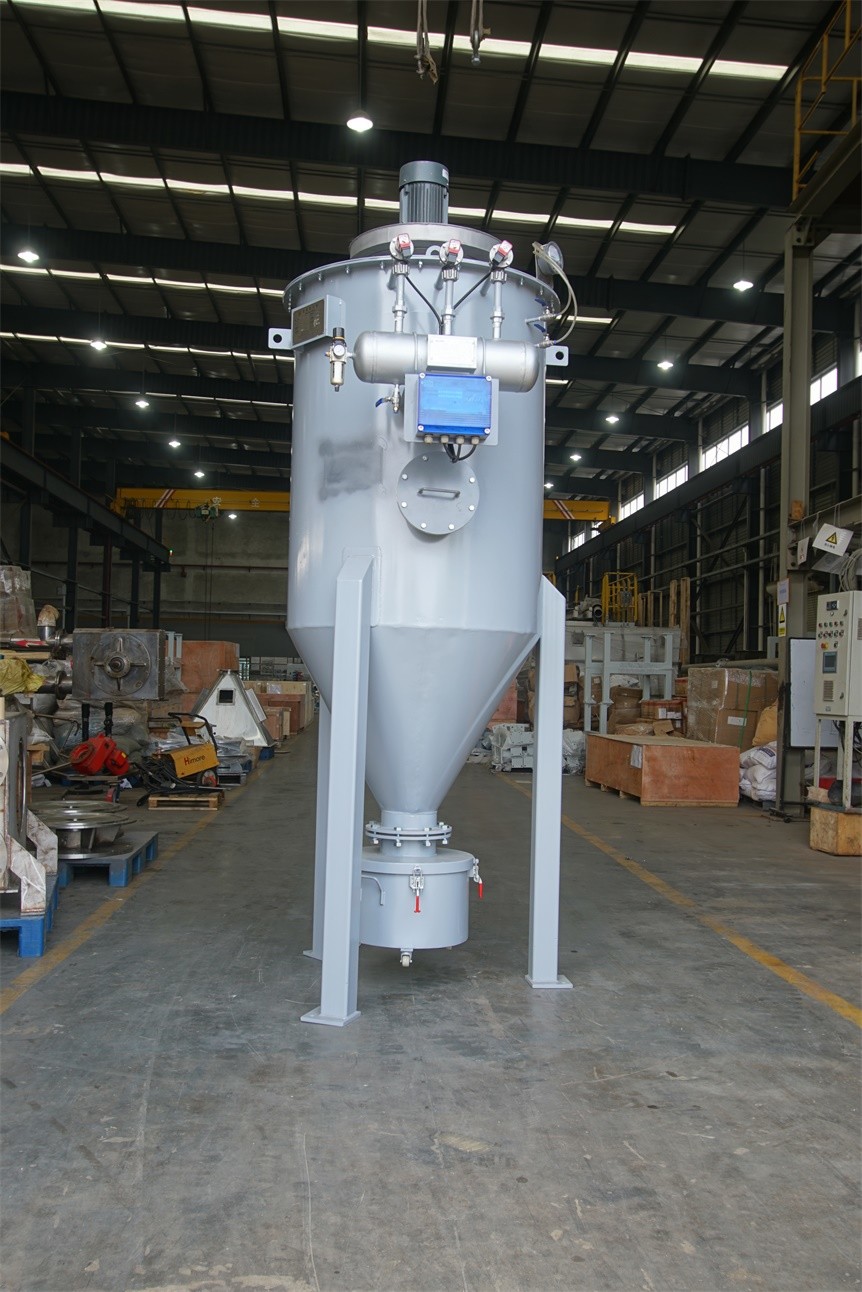

2100m3/H Industrial Dust Extraction System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HFT15AP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/year

Detail Information

Filter Efficiency: 99.99% Accessories: Solenoid Valve, Nozzle, Sight Glass Etc.
Flaw Resistance: 25kg/m³ Pressure Drop: Low Pressure Drop
Material: SS304, SS316, SS316L , Q235 Surface Smooth: Can Be Selected
Operation Cost: Low Cost Shipping Method: By Sea/by Air Etc.
High Light:

2100m3/H Industrial Dust Extraction System

,

1m/min Industrial Dust Extraction System

,

Q235 dust collection equipment

Product Description

special designed second high-efficiency filters with impulse controller



A dust collector is a system used to enhance the quality of air released from industrial and commercial processes by collecting dust and other impurities from air or gas.

We are a prominent manufacturer of a wide range of Dust Extraction and Dust Collector System for every segment of the industry in Shanghai China.

The offered range of these Dust Extraction System can be availed from us at comprehensive prices.

Model Parameters HFD-32 HFD-48 HFD-64 HFD-80 HFD-96 HFD-112
Air Volume(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filter Area(m2) 24 36 48 60 72 84
Filter Wind Speed(m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Material can be selected can be selected can be selected can be selected can be selected can be selected
Entrance Gas Temperature(℃) ≤120
Equipment Resistance(Pa) ≤1200
Soot Cleaning With Air Pressure(MPa) 0.4~0.6
No.of Pulse Valve 4 6 8 10 12 14
Blower Motor Power(KW) 1.5 3 3 5.5 5.5 7.5





Product advantages

1. Effectual filter area increase 2-3 times than general. Less pressure drop

2. Increased air flow, lower emissions, double filtration efficiency

3. Monolithic construction design, easy installation, examination and repair

4. Low injection gas press to save operating cost

5. Compacted structure to reduce the filter collector coving area and realize superfine dust filtration

6. Filter material with tectorial membrane, electric conduction polyester dipping treatment

7. Be able to make surface smooth if needed

8. Resistance to acid and alkali, resistance to moisture, non-bond on filter surface



Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.We can follow request of consumer to complete modification works. Increase process capacity and retain originally space. Offer optimum design, equipment and intelligence detecting and control system.



Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
