Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hanrui |
| Certification: | CE |
| Model Number: | DN100-DN400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | ply wood |
| Delivery Time: | 4-10 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 800 stes/ year |
|
Detail Information |
|||
| Material: | SS304, SS316, Q235 | Location: | Indoor /outdoor |
|---|---|---|---|
| Construction: | Firm, Compact @beautiful | Type: | U Shape |
| Seal: | Good Sealed | Main Size: | DN80-250(2-1/2"-10") |
| High Light: | QT500 Solid Conveying System,SS304 Solid Conveying System,ANSI screw conveyor feeder |
||
Product Description

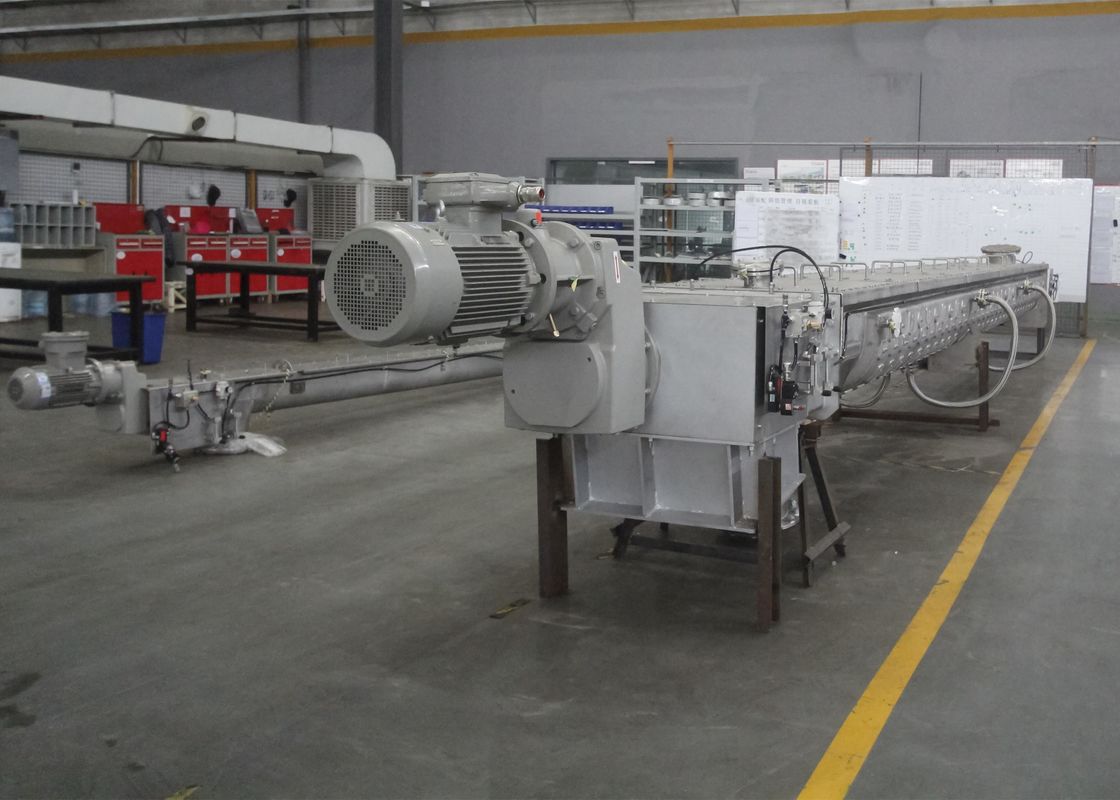

SS304 screw conveyor feeders for low pressure dilute phase pneumatic conveying system
1. Industrial screw conveyor even discharging and convenient to control the feeding.
2. The construction is firm, compact and beautiful in design.
3. Good seal and high pressure resistant
The related technical parameters of Screw feeders:
| Main Size | DN80-250(2-1/2’’-10’’) |
| Main Materials | SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc. |
| Flange Conn. Rating | ANSI B16.5 150LB, GB, HG, SH or designated by client |
| Applicable Medium |
Solid material(Power, particles, powders/particles mixtures, flakes and etc) |
It widely used in chemical, chemical fiber, fertilizer, food, pharmaceutical raw materials, dyes and other industries in solid powder, additives, catalysts, etc.
Screw feeders quality assurance:
1. We own scale, and professional processing and manufacturing ability
2. We strictly follow ISO9001 quality management system
3. We have comprehensive preventive measures, process control and detection means to control the whole process of quality effectively
Please point out the details of the following items while order:
1. Location: indoor or outdoor
2. Kindly provide he installment position and the conveying distance
3. Capacity(KG/H), and remark the ration conveying or variable conveying
4. Product characteristic:name, size ,bulk density, temperature, stickness and other special characteristics
5. Flange standard and flange dimension
6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
