Vertical Tubular Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000-50000USD
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Horizontal Length: 80M Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Vertical Length: 60m
High Light:

300m3/h chain vey conveyor

,

SS316 Tubular Chain Conveyor

,

Vertical Tubular Chain Conveyor

Product Description

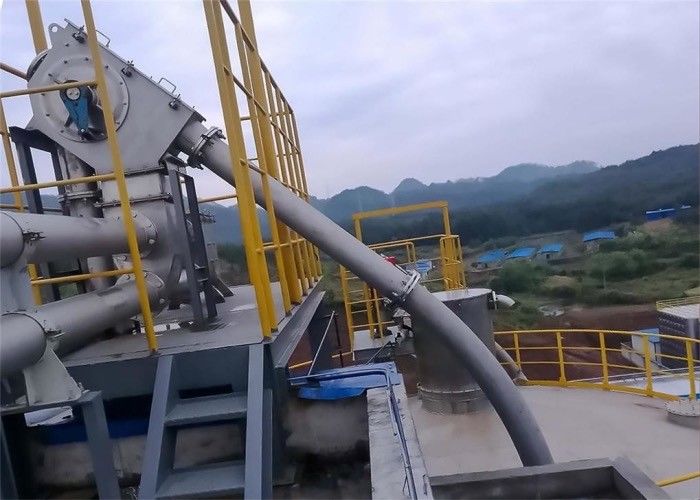

Vertical installed tubular chain conveyors with frequency converters



Tubular Drag Conveyors, sometimes called tubular drag chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.

Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Tubular Conveyor Features:



1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.

2. Requires minimum horsepower and energy consumption.

3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.

4. Self feeding with most flowable materials.

5. Gentle conveying action minimizes product attrition.

6. May discharge at multiple points in circuit; no special airlocks are required.

7. Operates at a minimum noise level.

8. Easily assembled in the field.

9. Saving cross-section Space,can be installed where other conveyor types cannot.

10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.

11. Wide range of sizes and materials of construction as required.



Please point out the details of the following items while order:

1. Location: indoor or outdoor

2. Kindly provide he installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic:name, size ,bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
