80M Tube Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Certification: CE/ISO9001 Etc. Max Capacity: 300m³/h
Max Length: Horizontal Less Than 80M Accessories: Bag Dump Station/screw Conveyor
Package Type: Stretch Film /plywood Installation Direction: Vertical/horizontal
Dust Leakage: Zero Leakage Shipping Method: By Ship /air Etc.
High Light:

60m pipe chain conveyor

,

15KW Tube Chain Conveyor

,

80M Tube Chain Conveyor

Product Description

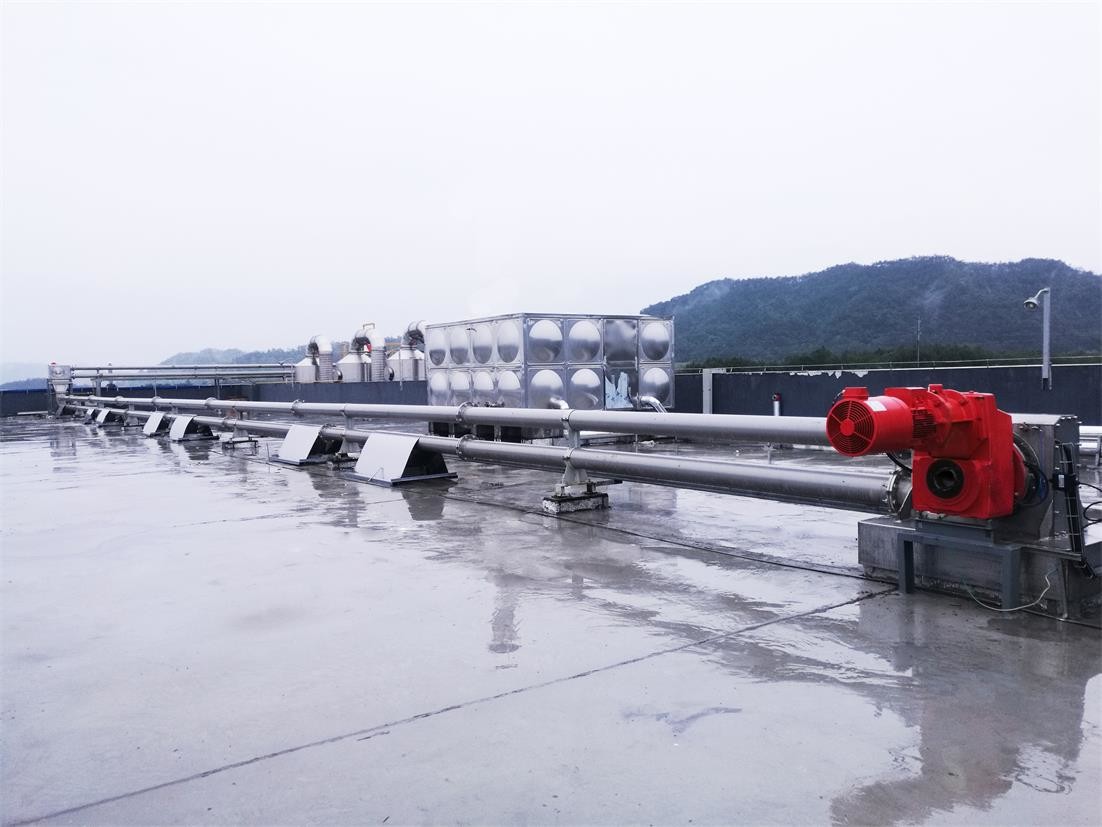

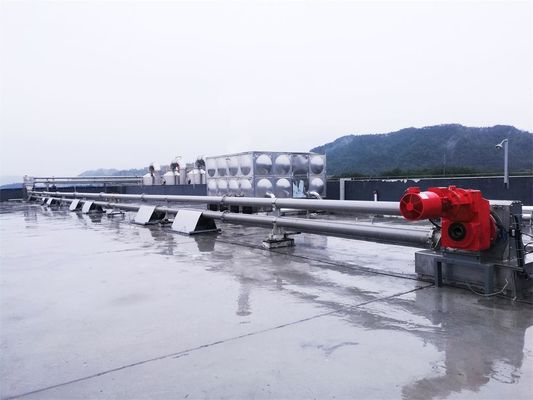

SS304 tube conveyor with large conveying capacity and good sealing



Tubular chain conveying solution is applicable for conveying bulk material like powder, small particle and small lump etc. It can be conveyed in horizontal, inclined, and vertical way. It is also applicable for the material conveying in explosion-proof area.
This solution can be designed according to the different material, conveying distance, and downstream or upstream requirements, including the explosion-proof area.

Tube Chian Conveyor Design Data:

Capacity = 300m3/h

Length: horizontal =80m Vertical =60m

Single machine power: =15KW

Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00

When conveyed horizontally, the solid material is pushed by disk in the running way.
When the internal friction of the material layer is larger than the external friction between
the material and pipe wall, the material will move forward via the disks and form stable
material flow;
When conveyed vertically, the material is pushed up by the disks, at the same time, the
bottom feeding will prevent the upper material from falling down, thus generates
horizontal side pressure which increases the internal friction. When the internal friction
between the materials is larger than the external friction between the material and pipe wall
and its own gravity, the material will move upward via disks and thus forms continuous
material flow.



FRQ questions:

1. Can we choose the material of the tubular chain conveyor?

Yes, for material, you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well, such as material name , bulk density, particle size, material flow ability etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer?

Yes , you can select motor & reducer brand according to your own requirement.
