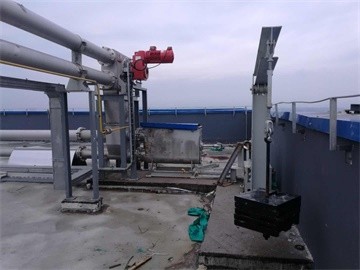

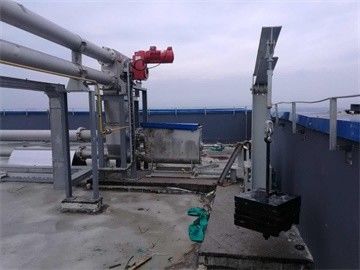

DN100 Tubular Drag Chain Conveyor

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HTC80-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 600sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Capacity: Less Than 300m³/h
Length: Less Than 80M (horizontal) Accessories: Rotary Valve,slide Gate Valve Etc.
Single Power: Less Than 15KW Main Size: DN100-DN400
Location: Indoor/outdoor Accessories: Slide Gate Valve ,rotary Valve Etc.
High Light:

DN400 Tubular Chain Conveyor

,

80M tubular drag chain conveyor

,

DN100 tubular drag chain conveyor

Product Description

easily assembled tubular drag chain conveyor with good sealing



Tubular Drag Conveyors, sometimes called tubular drag chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.

Tube Chain Conveyor Design Data:

1. Conveying capacity≤ 300m3/h
2. Conveying distance:

3. Horizontal distance≤ 80m

4. Vertical distance≤ 60m

5. Single machine power≤22KW
6. Working temperature:-20~200°C
7. Working pressure:ATM/Micro-positive pressure
8. Chain Line Speed:≤ 0.45m/s (DN200)
9. Disc material:PA,PE,PU,POM,PTFE
10. Chain material:Stainless steel, carbon steel etc.
11. Pipeline:Internally polished seamless stainless steel pipes and cold-formed elbows

Main technical parameters for DN100 tubular chain conveyor:

Q(m³/h) 1.25 2.00 2.65 4.00 5.50 7.00 8.75
P(KW) 0.75 1.10 1.50 2.20 3.00 4.00 4.00
V(m/s) 0.06 0.09 0.13 0.19 0.26 0.33 0.42
n(1/min) 3.20 5.40 7.30 11.00 15.00 19.00 4.00



Tubular Conveyor Features:



1. Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.

2. Requires minimum horsepower and energy consumption.

3. Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.

4. Self feeding with most flowable materials.

5. Gentle conveying action minimizes product attrition.

6. May discharge at multiple points in circuit; no special airlocks are required.

7. Operates at a minimum noise level.

8. Easily assembled in the field.

9. Saving cross-section Space,can be installed where other conveyor types cannot.

10. Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.

11. Wide range of sizes and materials of construction as required.
