China Solid Conveying System manufacturer

Q235 Pneumatic Conveying Equipment

Product Details:
Place of Origin: China
Brand Name: hanrui
Certification: CE
Model Number: DN125-DN400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: ply wood/stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets /year

Detail Information

Material: SS304, SS316, Q235 Conveying Type: Dilute/dense Phase Conveying
Dust Leakage: Zero Leakage Max Capacity: 100000kg/h
Conveying Distance: 1-100m Inner Surface: Ra 1.6/designated
Optional Accessories: Diverter Valve, Slide Valve Etc. Package Type: Stretch Film/ Plywood Etc.
High Light:

100m pneumatic transporter

,

100M Pneumatic Conveying Equipment

,

Q235 Pneumatic Conveying Equipment

Product Description

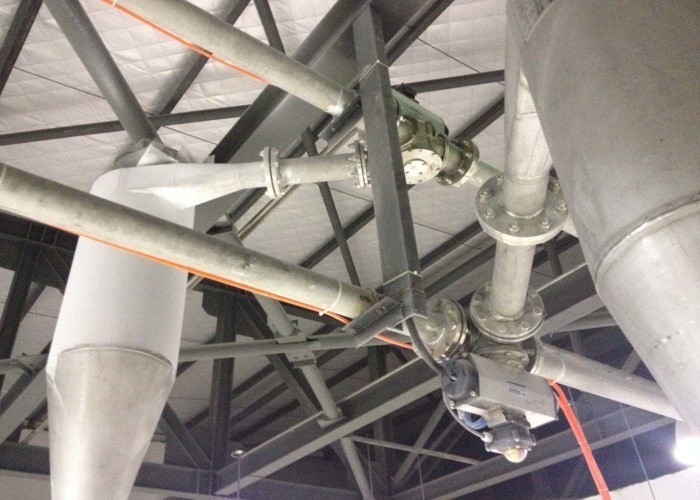

pneumatic vacuum conveying system applies multiple points destination



Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.



We provide STATE-OF-THE-ART Pneumatic Conveying System for different solids (powder/pellets).

We offer customized solution for solid transfer, providing clean, leak-proof, safe atmosphere in material handling plant.

We offer broadly dilute phase and dense conveying system.



Dilute Phase Pneumatic Conveying System (Lean Phase)


  • This system works on solid to air ratio.
  • System has low air pressure, high air volume.
  • System works with high velocity solid transfer.
  • System work with pressure conveying i.e. air blow or vacuum conveying viz. air suck.
  • Use of wide variety of solid system commonly used for, Non-Abrasive material, Economical up to 200 meter conveying
  • System mainly comprises of Positive Displacement Blower (pressure < 2 bar), Rotary Feeder and Product Separator.
    Features 1. Accommodate Your needs.
    Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs.
    2. Cost efficiency:
    Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device.
    3. Space Efficiency:
    Understanding the requirement of your project on environment and space, our professional R & D team will design the most appropriate system to suit your needs.
    4. Optional Component:
    Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
