China Solid Conveying System manufacturer

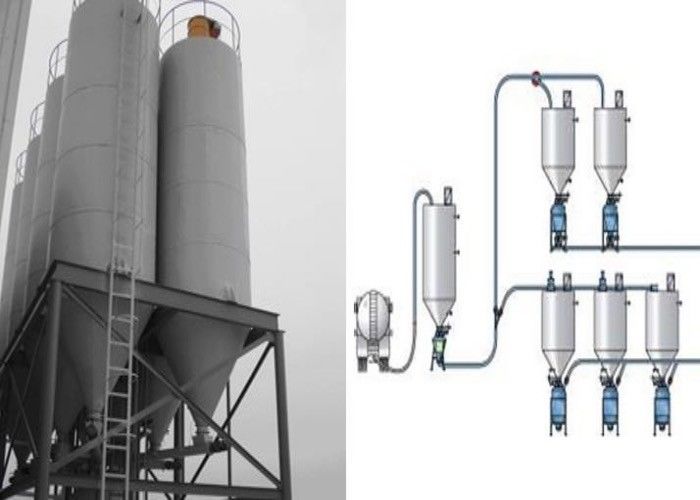

DN100 Pneumatic Conveying System

Product Details:
Place of Origin: China
Brand Name: hanrui
Certification: CE
Model Number: DN125-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: ply wood/stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets /year

Detail Information

Material: SS304, SS316, Q235 Type: Dilute/dense Phase Conveying
Voltage: 380V, 400V, 690V Etc. Capacity: 50-100000kg/h
Conveying Distance: Depends On Your Site Main Size: DN100-400
Accessories: Rotary Valve/screw Conveyor /hopper Shipping Method: By Sea/air
High Light:

690V pneumatic transport systems

,

DN400 pneumatic conveying system

,

DN100 Pneumatic Conveying System

Product Description

pneumatic conveying system with dosing and weighing equipment



We provide STATE-OF-THE-ART Pneumatic Conveying System for different solids (powder/pellets).

We offer customized solution for solid transfer, providing clean, leak-proof, safe atmosphere in material handling plant.

We offer broadly dilute phase and dense conveying system.



Hanrui Puzer dedicate customers needs, customers challenges, customers success. Dedicate responsibility, the tasks we give to ourselves, the promise we make to others, the trust others put in us. Welcome you build future with us.

Dilute Phase Pneumatic Conveying System (Lean Phase)
  • This system works on solid to air ratio.
  • System has low air pressure, high air volume.
  • System works with high velocity solid transfer.
  • System work with pressure conveying i.e. air blow or vacuum conveying viz. air suck.
  • Use of wide variety of solid system commonly used for, Non-Abrasive material, Economical up to 200 meter conveying
  • System mainly comprises of Positive Displacement Blower (pressure < 2 bar), Rotary Feeder and Product Separator.
Dense Phase Conveying System (Lean Phase)
  • This system works with high solid to air ratio.
  • System has low air pressure, high air volume.
  • System works with high velocity solid transfer.
  • System mainly consists of a compressor (Prime Mover, Pressure >2 bar), pressure Vessel / Transfer pot, controlling instrument, Valves and Panels.
  • Best suited for long distance conveying
  • Best suited for conveying abrasive solids.

FRQ questions:

1. Can we choose the material of equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
