12T/H SS304 Bulk Bag Discharger With Electric Hoist Lifting System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HGC1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1500 sets/year

Detail Information

Material: SS304, SS316, Q235 Capacity: 1-12T/H
Accessories: Dust Collector/rotary Valve Etc. Applicable: Chemical/rubber/food Etc.
Color: Can Be Selected Bag Load: 500kg/1000kg/1500kg.
Working Voltage: 380V, 3P, 50HZ Package Type: Stretch Film/plywood
Highlight:

1000kg bulk bag emptying system

,

50HZ Bulk Bag Discharger

,

SS304 Bulk Bag Discharger

Product Description

SS304 Ton bag break station with electric hoist lifting system



Big bag emptying systems elevates ton bag to material inlet, breaking the ton bag outlet by manual, then opens flowrate control valve with vibrancy equipment to promote unloading powder or pellets into the lower hopper by gravity.

Design capacity: 12bag/h;



Big Bag Unloader Function and Features:

Simple and reliable structure;

Little power consumption;

No damage and leakage for material;

Convenient operation;

Accessories for connection of dust collector;

Accessories for connection of discharge valve.



Big bag emptying is used in breaking and unloading big bag for dry powder or pellet material such as plastic pitch, carbon black and food additive in trades of plastic, rubber, food, medicine, chemical industries, and etc.

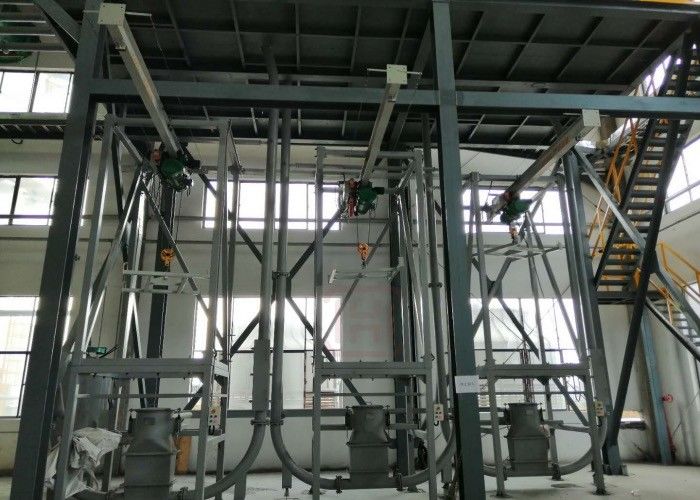

12T/H SS304 Bulk Bag Discharger With Electric Hoist Lifting System 0

FRQ questions:

1. Can we choose the material of the equipment?

Yes, for material, you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well, such as material name , bulk density, particle size, material flow ability etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer?

Yes , you can select motor & reducer brand according to your own requirement.
