SS304 Diverter Ball Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Working Pressure: ATM-0.6MPa
Working Temperature: -200-500℃ Shipping Method: By Sea/by Air Etc.
High Light:

0.6MPa distributing valve

,

Pneumatic Diverter Ball Valve

,

SS304 Diverter Ball Valve

Product Description

SS304 ball shape wear resistance type diverter with Pneumatic Actuated Actuator



Hanrui Puzer is professional as one of the leading swing plate diverter valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy swing plate diverter valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



Application of  diverter valve feature:

This ball type diverter valve is mainly used in the conveying system. Its fully closed construction is suitable for outdoor environment.



The related technical parameters of two way diverter valve:

Structure type Ball Type flap Type Rotating Plate Type Swing Plate Type
Piping Include Angle 45° 30° 22.3° 45°
60° 45° 30° 60°
90° 60° 45° 90°
120° 90° 60° 120°
Main Size DN40-600 DN50-800 DN50-800 DN100-1000
Working Pressure ATM/LP MP HP
ATM/<0.1Mpa 0.15~0.35Mpa >0.35Mpa
Working Temperature -20℃~200℃/≤450℃/≤720℃
Main Materials SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc.
Flange Conn. Rating ANSI B16.5 150LB, GB, HG, SH or designated by client
Applicable Medium Solid material(Power, particles, powders/particles mixtures, flakes and etc)

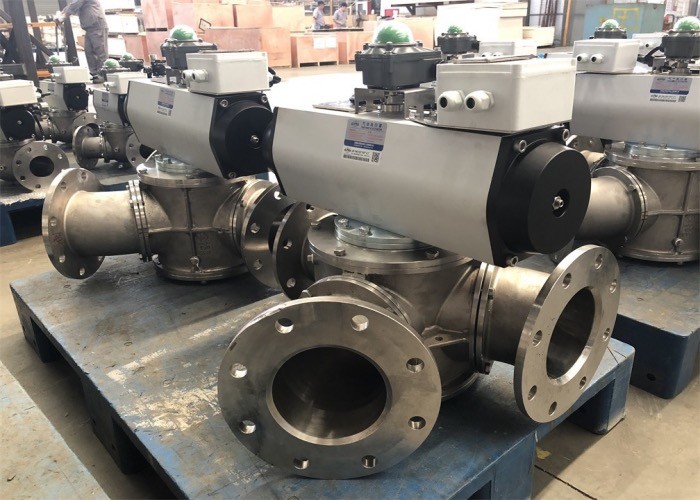

SS304 Diverter Ball Valve 0



Why Choose Us?

  • We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  • We have R&D abilities to enhance product performance and quality according to customer’s demands.
  • We can produce big size ball valves (16” to 24” / DN400 to DN600) which other companies might not be able to produce.
  • We have Metal Seated Ball Valves for high temperature media (maximum to 500°C), which is uncommon in valve production.
  • We have Multi-Port Ball Valves and 3-Way V Port Ball Valve, which are rarely found in other ball valve producers.
  • We have nearly 20 years of experience of manufacturing diverter valves.
  • We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  • Any questions will be replied within 24 hours.
