Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hanrui |
Certification: | ISO9001, CE |
Model Number: | HD150-600 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | negotiable |
Packaging Details: | plywood |
Delivery Time: | 4-8 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000 sets/year |
Detail Information |
|||
Material: | SS304, SS316, Q235,SS316L Etc. | Selected Shape: | V Shape, Y Shape, Ball Type |
---|---|---|---|
Installation Angle: | 30°, 45°, 60°, 90° | Selected Type: | Swing Board, Ball Type, Plug Etc. |
Applied Industry: | Chemical , Food, Medicine Etc. | Working Temperature: | -20-500℃ |
Main Size: | DN50-1000 | Flange Standard: | ANSI B16.5 150LB, GB, HG Etc. |
Highlight: | DN1000 distributing valve,DN50 Flap Diverter Valve,Q235 Flap Diverter Valve |
Product Description

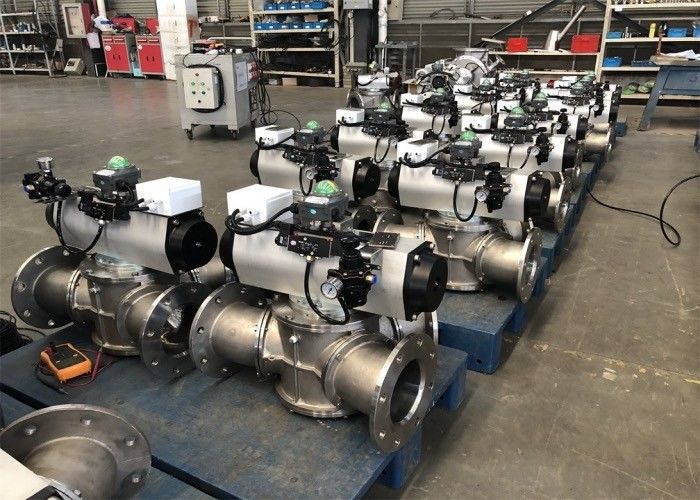

customized Q235 Flap diverter valve suitable for solid material conveying
Hanrui Puzer is professional as one of the leading swing plate diverter valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free to buy swing plate diverter valve at best price with us. We will offer you the greatest after-sales service and fast delivery.
The related technical parameters of two way diverter valve:
Structure type | Ball Type | flap Type | Rotating Plate Type | Swing Plate Type |
Piping Include Angle | 45° | 30° | 22.3° | 45° |
60° | 45° | 30° | 60° | |
90° | 60° | 45° | 90° | |
120° | 90° | 60° | 120° | |
Main Size | DN40-600 | DN50-800 | DN50-800 | DN100-1000 |
Working Pressure | ATM/LP | MP | HP | |
ATM/<0.1Mpa | 0.15~0.35Mpa | >0.35Mpa | ||
Working Temperature | -20℃~200℃/≤450℃/≤720℃ | |||
Main Materials | SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc. | |||
Flange Conn. Rating | ANSI B16.5 150LB, GB, HG, SH or designated by client | |||
Applicable Medium | Solid material(Power, particles, powders/particles mixtures, flakes and etc) |
FRQ questions:
1. Can we choose the material of the diverter valve ?
Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size ?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose installation type and direction?
Yes , you can select it according to your own requirement.
