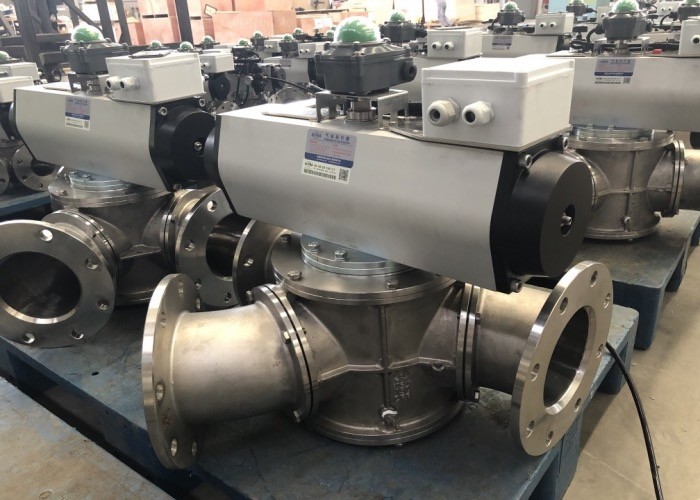

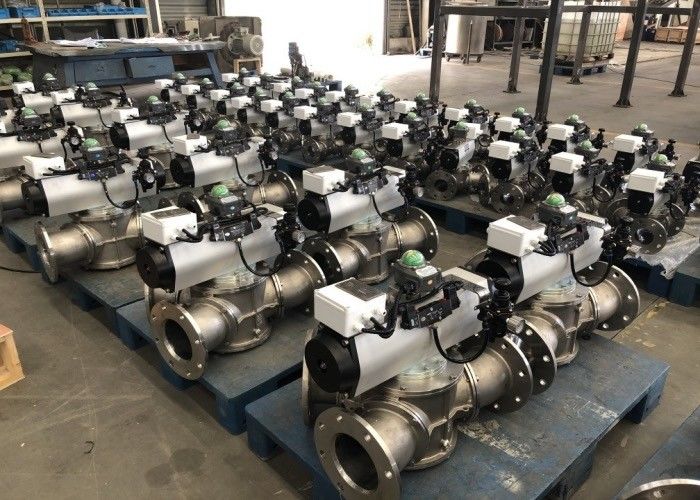

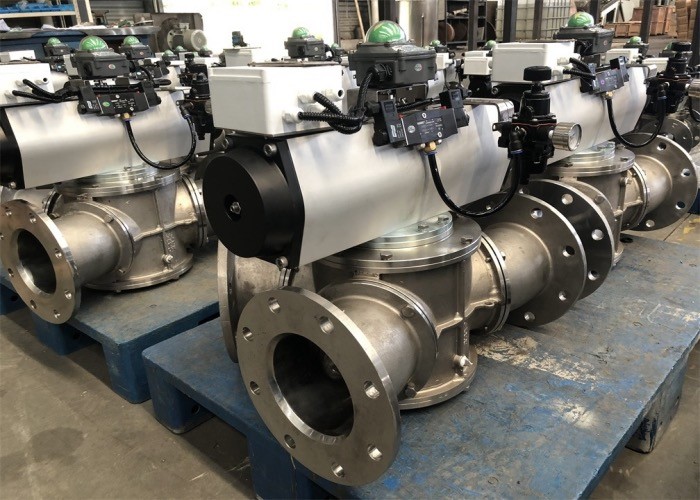

DN800 Distributing Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001, CE
Model Number: HD150-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235,SS316L Etc. Selected Shape: V Shape, Y Shape, Ball Type
Angle: 30°, 45°, 60°, 90° Selected Type: Swing Board, Ball Type, Plug Etc.
Applied Industry: Chemical , Food, Medicine Etc. Installation Direction: Can Be Selected
Location: According To Your Needs Seal Type: Can Be Selected
High Light:

SS316L flap diverter valve

,

0.35Mpa Distributing Valve

,

DN800 Distributing Valve

Product Description

Three-way diverter valves can meet clients' pressure and seal conditions



Diverter valve is commanly called as 3-way direction change valves and diving valves. It is a special equipment for switching the material flow direction. Its fully closed construction is suitable for outdoor enviroment.
Three way reversing valve basically includes valve body, valve plate seat, valve plate and air cylinder, The valve body is divided into three cavities A, B and C connected with the outside world by the valve plate seat. The sealing materials are installed between the valve body and the valve plate seat. The valve plate in the cavity is connected with the cylinder through the connecting shaft, and the flow direction of the gas in the pipeline is changed by changing the position of the valve plate. Because of the heat exchange through the heat storage body, the working temperature of the reversing valve is low, and there is no special requirement for the materials of the reversing valve. However, due to the requirements of continuous production, the reversing valve is required to overcome the dust abrasion in flue gas and the corrosive effect. The mechanical part needs to ensure the wear caused by frequent switching of components, which has required high reliability and working life.



Flap diverter valve is applicable for unloading,packing,mixing, dedusting, metering,rationing conveying of solid material(powder,particles and its mixture) conveying system.



Technical parameters:

Structure type Ball Type flap Type Rotating Plate Type Swing Plate Type
Piping Include Angle 45° 30° 22.3° 45°
60° 45° 30° 60°
90° 60° 45° 90°
120° 90° 60° 120°
Main Size DN40-600 DN50-800 DN50-800 DN100-1000
Working Pressure ATM/LP MP HP
ATM/<0.1Mpa 0.15~0.35Mpa >0.35Mpa
Working Temperature -20℃~200℃/≤450℃/≤720℃
Main Materials SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc.
Flange Conn. Rating ANSI B16.5 150LB, GB, HG, SH or designated by client
Applicable Medium Solid material(Power, particles, powders/particles mixtures, flakes and etc)



DN800 Distributing Valve 0
