SS316L Automatic Bag Slitter

Product Details:
Place of Origin: Shanghai,China
Brand Name: Hanrui Puzer
Certification: CE, ISO9001
Model Number: HGA50-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film/ply wood
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 400 sets /year

Detail Information

Material: SS304, SS316L, SS316, WCB Etc. Accessories: Screw Conveyor /dust Collector/Tubular Chain Conveyor
Capacity: 30-1800bags/H Weight/bag: 1-70kg/bag
Appliable Field: Chemical/pharmacy/food Etc. Max Capacity: 2000bags/hr
Dust Leakage: Zero Leakage Voltage: 380V, 3P, 50HZ
High Light:

0.1um bag slitting machine


SS316l Automatic Bag Slitter


0.1KG Automatic Bag Slitter

Product Description

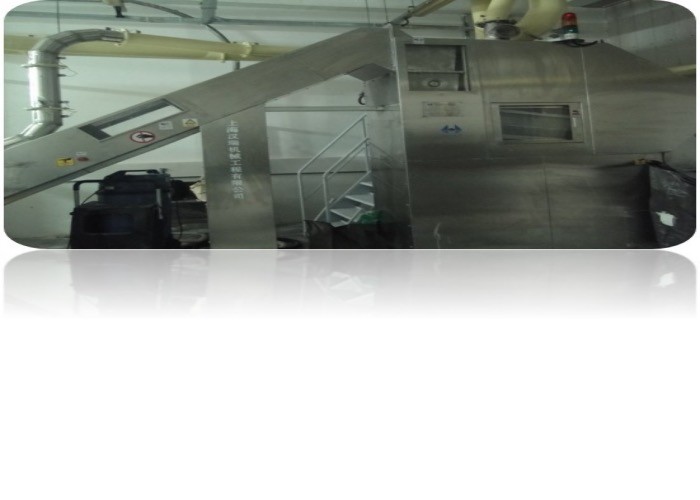

Automatic Bag Slitter for small bag with hopper and tubular chain conveyor


The machine is mainly suitable for toxic, flammable and strong corrosion, high dust and conditions that unsuitable for manual .It is widely used in petroleum, chemical, chemical fiber, dyes, medicine, food, electronics, paper, building materials, power , environmental protection, metallurgy and other production areas, it can automatically unpack any material bags (such as plastics , mixing agents, sewage treatment clarifiers, cement and other dry powders, granular materials, powder mixtures, flakes etc.)


SS316L Automatic Bag Slitter 0


Main parameters

◆Unpacking capacity: 2000 bags/ hour (maximum).

◆Wide range of unpacking: 0.1kg ~ 70kg/ bags

◆Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.

◆Material loss rate: 1/1000 ~ 1/10000

◆Dust emission concentration: 1mg/m3~30mg/m3

◆Dust collection efficiency: 99.9% ~99.999%

◆Minimum dust particle size: 0.1um



Model HGA1-120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width Depending on your condition
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet



Unpackable materials:

PP, PE, PVC, sodium carbonate, graphite, carbon black, calcium carbonate, caprolactam, washing powder, quartz sand, glucose, starch, white granulated sugar, protein powder, salt, soybean, urea, ammonium bicarbonate, ammonium nitrate, sodium nitrate, lithium carbonate, titanium dioxide, gypsum, BAC, active carbon, washing powder, bleaching powder and other solid bulk materials (powder, particle, sheet, etc.).
