China Solid Conveying System manufacturer

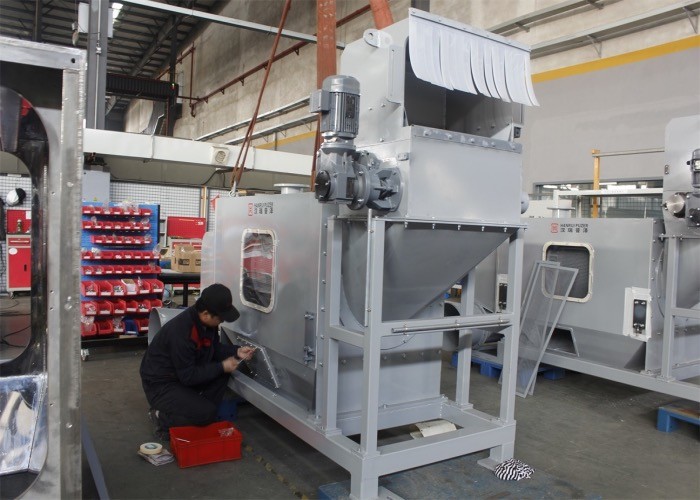

Dust Free Bag Slitter

Product Details:
Place of Origin: Shanghai,China
Brand Name: Hanrui Puzer
Certification: CE, ISO9001
Model Number: HGA50-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film/ply wood
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 400 sets /year

Detail Information

Material: SS304, SS316L, SS316, WCB Etc. Accessories: Screw Conveyor /dust Collector/Tubular Chain Conveyor
Capacity: 30-1800bags/H Weight/bag: >1000kg
Appliable Field: Chemical/pharmacy/food Etc. Package: Stretch Film /plywood
PLC Control System: Can Be Selected Material Conveying: By Mechanical /pneumatic
High Light:

SS304 bag slitting machine


1800 bags/H bag slitter


dust free bag slitter

Product Description

Full automatic intelligent dust-free bag slitter


Working process of automatic ton bag unpacker:
The electric hoist lifts the ton bag packing material to the feeding port. After the bag cutting port is manually disassembled, the flow control valve and the attached vibration cutting device are opened to make the powder and granular material in the bag fall into the lower hopper through the self weight. There is no dust leakage in the process of blanking, and a large amount of labor cost is saved.

Working characteristics of automatic ton bag unpacker:
1. The overall structure of the unpacking machine is compact, exquisite and beautiful, easy to operate, and the power consumption of the ton bag unpacking machine is small.
2. The bottom vibration device can ensure the smooth unloading and prevent the retention of materials.
3. The operation of T-Bag unpacker is convenient and comfortable, which can effectively reduce the labor intensity of workers and improve work efficiency.
4. The dust control effect is good. The fully enclosed type can realize synchronous dust collection, and there is no dust leakage during the operation of the bag remover.
5. After unpacking, there is no residual material in the bag.
6. After unpacking, it can be transported to a proper position through professional conveying equipment such as pipe chain conveyor, screw conveyor, etc.

Model HGA120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width 760mm/1260mm/1560mm
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet

Application scenario of automatic ton bag unpacker:
T-Bag unpacking machine is suitable for unpacking and unloading of building materials, coal, chemical industry, pesticide, chemical fertilizer, rubber, plastic, metallurgy, medicine, chemical fertilizer, feed, grain, energy mineral, pharmaceutical, non-metallic mineral (iron powder, copper powder, mineral powder), ultra-fine powder, nano powder and powder granular materials.


Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.
