SS304 Automatic Bag Slitting Machine

Product Details:
Place of Origin: Shanghai,China
Brand Name: Hanrui Puzer
Certification: CE, ISO9001
Model Number: HGA50-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film/ply wood
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 400 sets /year

Detail Information

Material: SS304, SS316L, SS316, WCB Etc. Accessories: Screw Conveyor / Dust Collector/Tubular Chain Conveyor
Capacity: 30-1800bags/H Weight/bag: >1000kg
Appliable Field: Chemical/pharmacy/food Etc. Applicable Material: Powder/flakes/parcels/mixtures
Unpacking Range: 0.1-70KG Voltage: 380V, 3P, 50HZ
Highlight:

1200 bag/h automatic slitter

,

70kg Automatic Bag Slitting Machine

,

SS304 automatic bag slitting machine

Product Description

Automatic small bag unpacking machine suitable different kind of powder



Automatic unpacking machine is used for small bags of powder and granular materials.For example, protein powder, activated carbon, milk powder, additive powder, etc., can be used for automatic bag-opening and unloading. It can be used for automatic bag-feeding by belt machine, automatic bag-breaking by cutter device, automatic bag-opening and unloading by vibrating screen and other steps.The dust generated in the operation is filtered and removed by the dust removal device, so that the workers can work in a clean environment.



  1. Materials in the process of broken bag and material separation are completely closed, and each process has dust collecting device, no dust leakage, low noise, and improve the working environment of workers.
  2. Only one person on site can place the packaging bag on the belt conveyor, which reduces the working intensity of workers.
  3. Simple and reliable operation of the equipment, low failure rate and reduced maintenance workload.
  4. The equipment is specially designed so that the broken packaging bag can be perfectly separated from the material without being mixed into the material or hanging in the separation device.
  5. The equipment can automatically count, and the baging quantity can be set freely. When the baging quantity reaches the set, the equipment will stop automatically.
  6. Automatic alarm, emergency stop, protection of equipment and avoidance of misoperation.
  7. Broken bag, unloading, and other conveying equipment can be used to complete the conveying and storage of powder.
  8. No need to adjust the equipment, can handle different sizes of packaging bags.

Features:

  • Simple open- bag structure and easy for operation
  • Tapping device can ensure the material smoothly feed into the next process from the sack
  • Crusher breaks the block during splitting the bag to ensure the next processing work smoothly.
  • Fully automated operation that increase productivity and reduce labor intensity;
  • Sealed split bag that prevent dust emissions, no heat generation, improve the working environment, reduce production costs;
  • Cutting the bag, beating, crushing, magnetic separation integrated design makes structure compact and operation convenient .
  • After unpacking the bag, the material can be conveyed to proper position by the chains conveyor, screw conveyors, pneumatic conveying systems or other specialized conveying equipment.



Main parameters

  • Unpacking capacity: 2000 bags/ hour (maximum).
  • Wide range of unpacking: 0.1kg ~ 70kg/ bags
  • Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.
  • Material loss rate: 1/1000 ~ 1/10000
  • Dust emission concentration: 1mg/m3~30mg/m3
  • Dust collection efficiency: 99.9% ~99.999%
  • Minimum dust particle size: 0.1um



Typical engineering application

  • Polymer (polypropylene, polyethylene, polystyrene, polyvinyl chloride, polycarbonate, polyester, nylon, pom, ABS, etc.).
  • Food and pharmaceutical raw materials (glucose, white granulated sugar, protein powder, milk powder, sorbic acid,alcohol, monosodium glutamate, salt, coffee, maltodextrin, yeast, wheat, rice, soybean, pepper powder, citric acid,gluten flour, starch, etc.).
  • Chemical raw materials (urea, ammonium bicarbonate, ammonium nitrate, sodium nitrate, lithium carbonate,chloroacetic acid, potassium chloride, sodium hydroxide, industrial salt, etc.).
  • Dye, coating, paint, ceramic ( titanium dioxide, gypsum, calcium carbonate, barium sulfate, ferrotitanium powder,coarse whiting, talcum powder, kaolin, etc.).
  • Additives, water clarifying agent, additives, detergent (calcium carbonate, carbon, activated carbon, washing powder,bleaching powder, etc.).
  • Building materials: cement, quartz sand, lime,rubber owder, etc.
  • Other industries: other bulk bags which are suitable for automatic unpacking powder (powder, particles, flake, etc.).
Model HGA1-120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width 760mm/1260mm/1560mm
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet



FRQ questions:

1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the cylinder?

Yes , you can select cylinder brand according to your own requirement.

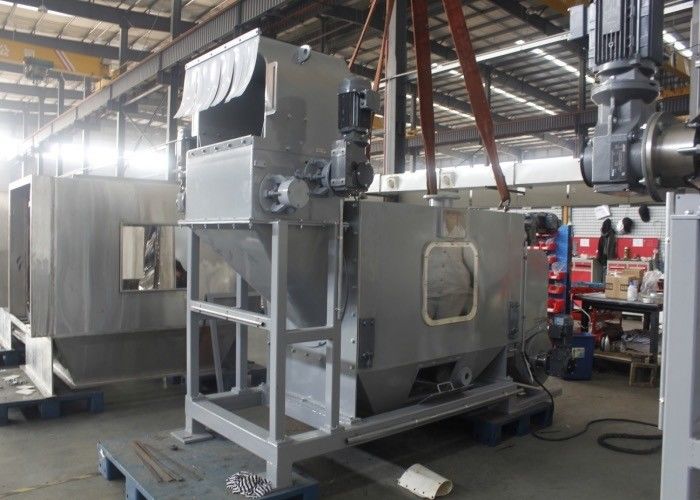

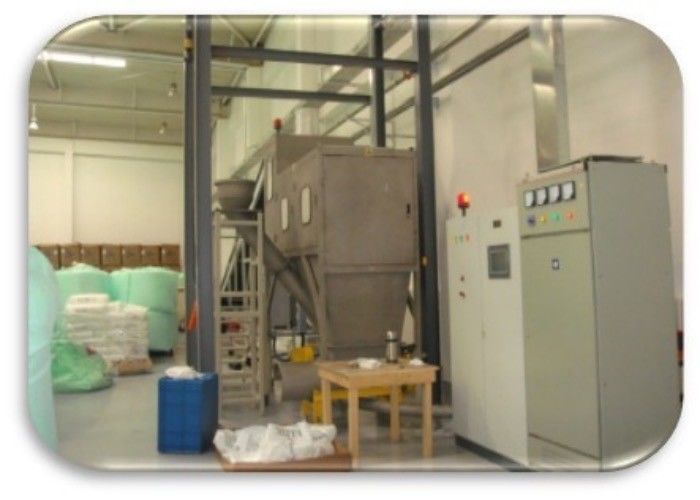

SS304 Automatic Bag Slitting Machine 0SS304 Automatic Bag Slitting Machine 1
