China Solid Conveying System manufacturer

Q235 Bulk Bag Dump Station

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001/iso14001
Model Number: HGB8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Accessories: Dust Collector/bag Cutting Machine Etc.
Structure: Welded Steel Struction Certification: CE/ISO9001/ISO14001
Maxim Capacity: Up To 20T Electrical Equipment: Simens, Schneider, Nord Etc.
Surface Polish: According To Your Needs Working Type: Manual Operation
High Light:

380V Bag Dump Station


SS316L Bulk Bag Dump Station


Q235 Bulk Bag Dump Station

Product Description

Bulk material manual bag dump station/Bulk Material Mirror Polishing Manual Bag Dump Dust Free Feeding Station


Bag dump station called manual bag opener or bag emptying. Its filter system is a self-contained,compact system.The system eliminates dust by recapturing particles and returning them to the hopper .


Hanrui Puzer is professional as one of the leading semi automatic bag dump station manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy semi automatic bag dump station at best price with us. We will offer you the greatest after-sales service and fast delivery.


The operator puts the bag on the support and pushes it into the grille. Then he slits the bag with a vertical cut and shakes it unt仆empty. The bag content may be discharged through a hopper into the feeding device. The built—in fan can recycle the dusty gas caused during the course of bag unpacking. Automatic pulse back blow dust collector will clear the dust at a regular time. The empty bag can be sent to the optional waste bag compactor to ensure the site in clean environment.


Data sheet for bag unloader


Technical parameters Model HGB8
Unloading Speed 10-20 bag/h
Air consumption depends on your working condition
Electric Chain Block Speed 10.05m/min
Frame Material Carbon steel, 304,304L / 316L stainless steel etc.
Power & Output 3 phase 380V 50Hz
Total weight depends on material you choose
package  stretch film / plywood



Welded steel construction.

The construction is compact and beautiful in design.

Available with de-dusting filter equipment or centralized dust suction.

Hoppers with different capacity volumes.

The height of supporting legs can be adjusted.

Accessories for connection of waste Bag Compactor.

Accessories for connection of automatic bag cutting mechanism.

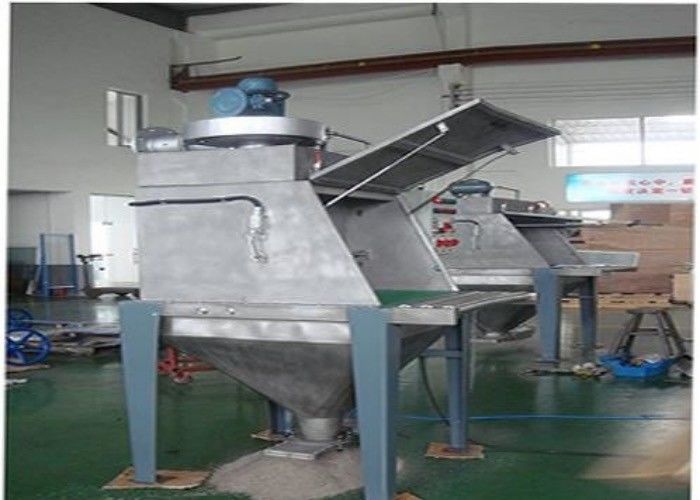

Q235 Bulk Bag Dump Station 0

Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We have nearly 20 years of experience in bulk material area.
  4. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  5. Any questions will be replied within 24 hours.
