SS316 Automatic Truck Loading System

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001
Model Number: HRT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: stretch film/plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 300 sets / year

Detail Information

Material: SS304, SS316, SS316L, Q235 Applicable Truck: 20ft/40ft/other
Loading Capacity: Depends On Loading Material Accessories: Tubular Chain Conveyor/dump Station Etc.
Filling Efficiency: 98%-100% Existing Case: PP, PVC Powder
Silo Height: Maxam 20M Voltage: 220V/380V
High Light:

SS316 Automatic Truck Loading System

,

380V Automatic Truck Loading System

,

SS316 automatic loading system

Product Description

Storage area saving truck loading system in bulk solid material conveying



Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements



Bulk truclk loading system is one of our most popular system in our company , it only needs a suitable place for equiping all devices instead of a large storage area. In the past 18 years  we have researched many mature solutions fpr different working conditions and materials . We welcome your enquiry in this area.



 The bulk truck loading system is easy to operate , worker only needs to park the bulk truck on the designated location, operate automatic loading & unloading management system and input loading time and capacity through the operating screen in real .





Features of Hanrui's bulk truck loading system :

1. The weight can be controlled stably by the automatic loading system .

2. The loading pressure can be controlled accurately , which guarantees the filling efficiency , meanwhile , it can avoid bag bursting risk .

3. Improve loading efficiency .

4. Can reduce the storage area of warehouse and the cost of storage transfer.

Features 1. Accommodate Your needs.
Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs.
2. Cost efficiency:
Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device.
3. Space Efficiency:
Understanding the requirement of your project on environment and space, our professional R & D team will design the most appropriate system to suit your needs.
4. Optional Component:
Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system



Types of truck loading system

1. Level gravity loading system

 This type of loading system applies to silo over 20M , no additional energy required, the filling efficiency is over 95%.

2.Pneumatic conveying loading system

This type of loading system applies  to granule material loading and the silo foundation is over 1M . No special requirement of container car position. The pneumatic conveying system is integrated. Filling efficiency reaches 100%.

3. Mechnical conveying loading system

This system can contain different combanations: big bag unloading +tubular chain conveying system

                                                                              dump station +tubular chain conveying system

                                                                               big bag unloading +screw conveyor

                                                                               dunmp station +screw conveyor .

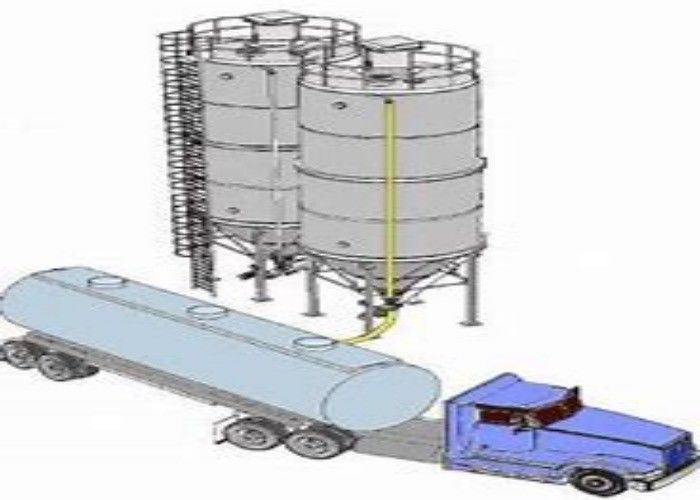

SS316 Automatic Truck Loading System 0
