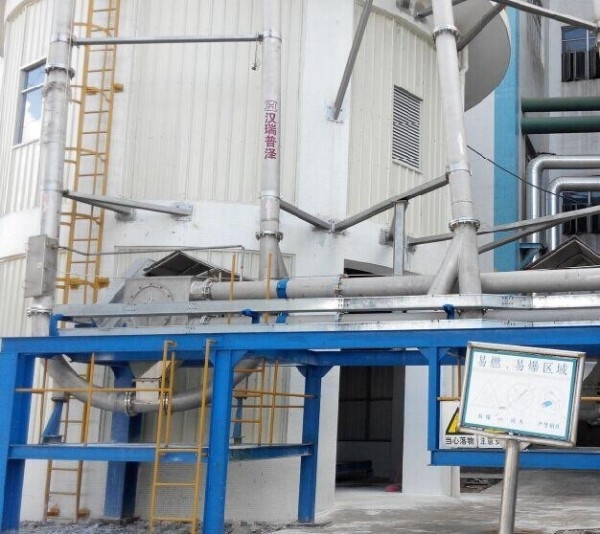

Tubular Chain Solid Conveying System Totally Enclosed

Detail Information

High Light:

Tubular chain Solid Conveying System


totally enclosed Tubular chain conveyor


totally enclosed Solid Conveying System

Product Description

Hanrui Home >> Products >> Tubular chain conveyor >> Tubular chain conveyor
  • Product Name: Tubular chain conveyor
  • Product ID: HR04
  • Product details

The Tubular Drag Chain Conveyor, sometimes called a disc chain conveyor, is a mechanical system that operates within the confines of a pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey powder, small particle and small lump and so on the bulk material, can convey in the level, the incline and the vertical . It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals ore, the food industry, the Building materials profession, ect.

Product Features:

  • Provides totally enclosed, dust-free, contamination-free handling,no need dust collector at the discharge.
  • Requires minimum horsepower and energy consumption.
  • Handles hot, cold, wet, dry, hygroscopic or temperature sensitive materials.
  • Self feeding with most flowable materials.
  • Gentle conveying action minimizes product attrition.
  • May discharge at multiple points in circuit; no special airlocks are required.
  • Operates at a minimum noise level.
  • Easily assembled in the field.
  • Saving cross-section Space,can be installed where other conveyor types cannot.
  • Food grade, polished stainless steel chain for food and pharmaceutical applications in sanitary environments.
  • Wide range of sizes and materials of construction as required.

Design Data


Length: horizontal ≤80m Vertical60m

Single machine power15KW
