China Solid Conveying System manufacturer

Monolithic Construction Dust Collection System Low Abrasion

Detail Information

High Light:

Monolithic construction dust collection system

,

low abrasion dust collection system

,

Monolithic construction dust collector system

Product Description

Hanrui Home >> Products >> Dust collector >> Dust collector

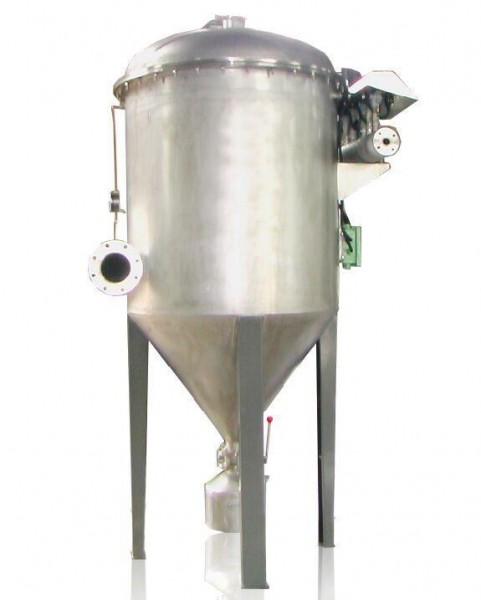

  • Product Name: Dust collector
  • Product ID: HR07
  • Product details

Dust collector is designed to separate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food, medicine, electric power, metallurgy and concrete industry.Dust Filter can be divided into pneumatic conveying filter and silo filter according to its use.It can be also divided into bag filter and cartridge filter according to structure. Filter material is made of fibre, common felt, felt with Tex, polyester, Nomex, polymer cloth, Teflon, terylene, Plypropylene…

Product Features:

  • Effectual filter area increase 2~3 times than general. Less pressure drop; Increased air flow; Lower emissions; Double filtration efficiency.
  • Monolithic construction design, easy installation, examination and repair, shorter stop-product time, smaller filter element, less abrasion failure and longevity of service.
  • low injection gas press, to save operating cost.
  • Compacts structure for downsizing,; be able to process superfine particle.
  • Filter material with tectorial membrane, electric conduction polyester dipping treatment; be able to make surface smooth if need.
  • Resistance to acid and alkali, resistance to moisture, non-bond on filter surface.
  • Filter efficiency: 99.99%and if needcan use two times high efficiency filters.
  • Operating temperature: Common filter material: 130℃; Resistance to high temperature filter material: 204℃.
  • Breaking point: 25kg/cm2; stretching resistance: 90kg(X)102kg(Y).
  • Back injection, mechanical shake and acoustic wave can be used in Baghouse operational. The back injection filter componentsimpulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass ect.
  • We can also follow request of consumer to complete modification works. Increase process capacity and retain originally apace. Offer optimum design, equipment and intelligence detecting & control system.
