China Solid Conveying System manufacturer

Zero Leakage Food Material Conveying WCB Manual Slide Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: HHA150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000SETS/YEAR

Detail Information

Material: SS304, SS316, Q235 Leakage: Zero Leakage
Max Temperature: 500℃ Location: Indoor/outdoor
Drive Type: Manual/pneumatic /electric Etc. Surface Polish: Can Be Selected
Applicable Industry: Chemical/food/new Material Etc. Package Type: Stretch Film/plywood Etc.
High Light:

WCB Manual Slide Valve

,

SS304 Manual Slide Valve

,

DN50 slide gate valves

Product Description

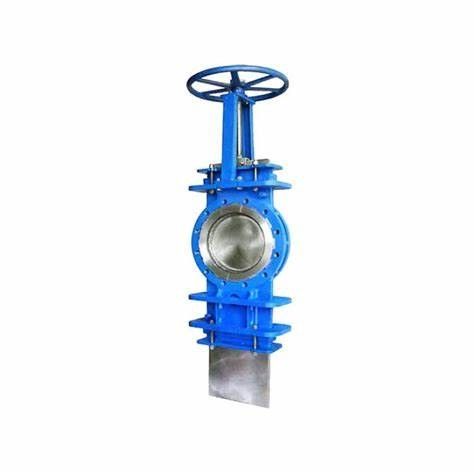

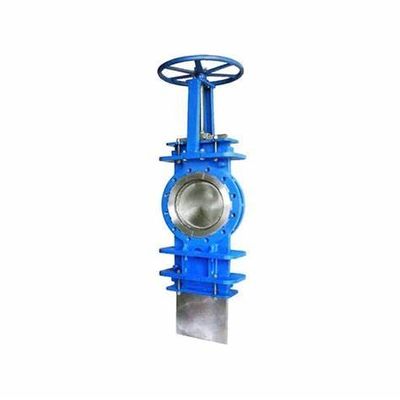

Manual operation slide gate valve for food material conveying



Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.



Product application

This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.



Mian Technical Data Sheet

working pressure  ATM/LP--ATM/0.1MPA     MP--0.35MPa
Working temperature -20℃-200℃,≤500℃
Main size  DN50-DN1000MM(2''-40'')
Main materials SS304, SS304L,SS316, SS316L, WCB etc.
Connection Methord Wafer type / Flange type
Applicable medium Solid materials(Powder, particles, Powders/particles mixtures etc. )



Product application

This slide gate valve is mainly used in opening and closing pipeline in the solid material conveying system. Its fully closed structure is applicable for outdoor condition. And generally this knife gate valve is used at the bottom of silos, hoppers or other related equipment.



FRQ questions:

1. Can we choose the material of the slide gate valve ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .



Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
