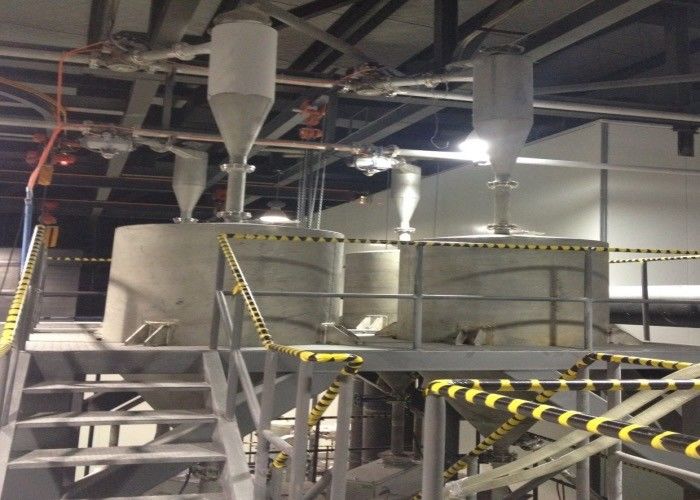

High Speed 800m Solid Material Conveying System

Product Details:
Place of Origin: China
Brand Name: hanrui
Certification: CE
Model Number: DN125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: ply wood/stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets /year

Detail Information

Material: SS304, SS316, Q235 Selected Type: Dilute/dense Phase Conveying
Working Voltage: 380V, 400V, 690V Etc. Max Capacity: 100000kg/h
Max Conveying Distance: 800m Package Type: Stretch Film/plywood
Shipping Method: By Sea/air Etc. Accessories: Hopper/rotary Valve Etc.
High Light:

100000kg/h pneumatic conveying equipment

,

10m/s solid material conveying system

,

800m solid material conveying system

Product Description

solid material conveying systems replace traditional machinery conveying



Pneumatic conveying uses certain pressure and speed air flow as power and carrier to convey powder or particle solid materials via pipe to te designated locations. It si widely used in the trade of chemical industry, metallurgy , food, pharamacy and other areas with advantage of clean, high-speed and quantification . This technology can not only convey powder , particle, and fibrous materials, such as PE, PP, PVC, cereals, cotton, carbon black etc. It can also convey small block materials, such as coal, rock etc.



Dilute Phase Pneumatic Conveying System (Lean Phase)


  • This system works on solid to air ratio.
  • System has low air pressure, high air volume.
  • System works with high velocity solid transfer.
  • System work with pressure conveying i.e. air blow or vacuum conveying viz. air suck.
  • Use of wide variety of solid system commonly used for, Non-Abrasive material, Economical up to 200 meter conveying
  • System mainly comprises of Positive Displacement Blower (pressure < 2 bar), Rotary Feeder and Product Separator.
Dense phase pressure conveying generally uses compressed air at above 0.1Mpa to push materials from a hopper and high pressure rotary valve or pressure vessel through a pipeline to the destination where the air and product are sparated by a filter or other systems. The  product extrudes through the pipeline at low velocity , towards the destination.
Composition and principle
The system is combined with feeders sucha as high pressure rotary valve or pressure vessel, pipeline, receing hopper and sensors
 control,. The types of dense phase pressure pneumatic conveying includes pressures vessel conveying, rortary valve ense phase pneumatic conveying.

The batch conveying and continuous conveying can be met by this type of conveying system, the conveying can be continued even if unexpected situation occured.

The feature of this low velocity, anti-plugged and dust free, and several kinds of materials can be conveyed by one pneumatic conveying system.



Specifications Description
conveying speed 2-10m/s
conveying distance  Max:1200m
Operation pressure  0.1-0.7MPa
SLR 15-40kg/kg
Pipe material SS304, Q235,aluminum alloy pipe etc.
Feeding and continuous conveying  double blow tankcontinuous conveying, high pressure rotary feeder continuous conveying , single blow tank batch conveying



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
