China Solid Conveying System manufacturer

Small 30 Bags/H Automatic Slitter For With Hopper Screw Feeder

Product Details:
Place of Origin: Shanghai,China
Brand Name: Hanrui Puzer
Certification: CE, ISO9001
Model Number: HGA50-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Stretch film/ply wood
Delivery Time: 5-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 400 sets /year

Detail Information

Material: SS304, SS316L, SS316, WCB Etc. Accessories: Screw Conveyor /dust Collector/belt Conveyor
Capacity: 30-1800bags/H Weight/bag: >1000kg
Appliable Field: Chemical/pharmacy/food Etc. Working Voltage: 380V, 3P, 50Hz
Lengeth Of Belt: Depends On Site Condition Conveying Type: Mechanical/pneumatic
High Light:

SS304 small bag slitter

,

1800 Bags/H Automatic Slitter

,

30 Bags/H Automatic Slitter

Product Description

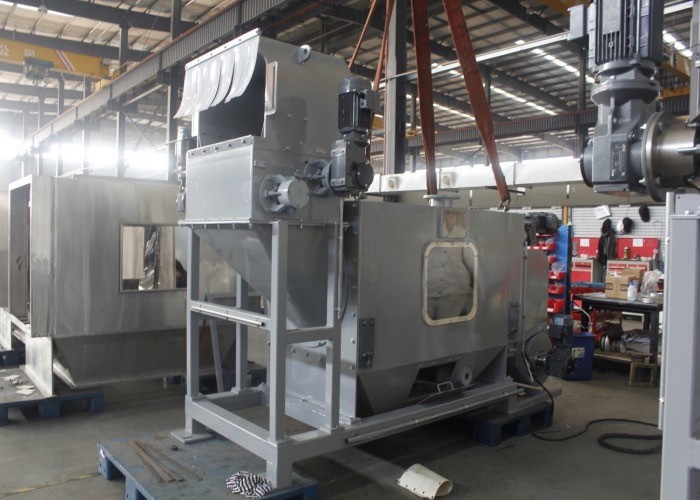

Slitter with hopper and screw feeder for opening ton bags



Automatic unpacking system is mainly used to unpack sacked raw material (such as plastics and additives, mixture, auxiliaries, dry powder, granule material in the trade of chemical industry, coating. medicine, food, electronic, paper making, military industry and other industries.



Function and characteristics

◆ Reduce the amount of workers as well as the labor intensity.

◆ No dust leakage and improve the operating environment.

◆ Never pollutes the material and low material loss.

◆ Can satisfy the food level, explosion- proof, toxic materials and other special conditions.

◆ Automatic and intelligent operation: system automatic monitoring and real time display of running state, automatic counting and measurement, interlock, alarm signal output and feedback can interlock with the customer s central DSC control system.

◆ Other functions like automatic de-palltizing from stacking pallet, unpacking, automatic waste bag collecting and packing, pallet automatic recycling, material handling, dust collecting, weighing and dosing can realize the automatic and intelligent production.





Main parameters



◆ Unpacking capacity: 2000 bags/ hour (maximum).

◆ Wide range of unpacking: 0.1kg ~ 70kg/ bags

◆ Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.

◆ Material loss rate: 1/1000 ~ 1/10000

◆ Dust emission concentration: 1mg/m3~30mg/m3

◆ Dust collection efficiency: 99.9% ~99.999%

◆ Minimum dust particle size: 0.1um



Unpackable materials:

PP, PE, PVC, sodium carbonate, graphite, carbon black, calcium carbonate, caprolactam, washing powder, quartz sand, glucose, starch, white granulated sugar, protein powder, salt, soybean, urea, ammonium bicarbonate, ammonium nitrate, sodium nitrate, lithium carbonate, titanium dioxide, gypsum, BAC, active carbon, washing powder, bleaching powder and other solid bulk materials (powder, particle, sheet, etc.).



Why choose us

1. Hanrui can supply you better solutions for small bag emptying

2. Our solution can achieve automation, intelligent, standardized production

3. Hanrui can provide complete sets of automatic and intelligent production equipment.



Model HGA1-120BP
Max. slitting capacity 1200bag/hr
Max single package weight 50KG/bag
Accessories Dust collector/rotary valve/screw conveyor
Max. unwinding width Depending on your condition
Total power Depends on your working condition
Material SS304, SS316, Q235 etc.
Package Stretch film /plywood/ wooden pallet

Small 30 Bags/H Automatic Slitter For With Hopper Screw Feeder 0

Small 30 Bags/H Automatic Slitter For With Hopper Screw Feeder 1
