Product Details:
|
|
| Place of Origin: | Shanghai，China |
|---|---|
| Brand Name: | Hanrui Puzer |
| Certification: | CE, ISO9001 |
| Model Number: | HGA50-1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Stretch film/ply wood |
| Delivery Time: | 5-8 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 400 sets /year |
|
Detail Information |
|||
| Material: | SS304, SS316L, SS316, WCB Etc. | Accessories: | Screw Conveyor /dust Collector/Tubular Chain Conveyor |
|---|---|---|---|
| Capacity: | 30-1800bags/H | Weight/bag: | >1000kg |
| Appliable Field: | Chemical/pharmacy/food Etc. | Main Size: | 140MM, 160MM, 180MM Etc. |
| Unpacking Material: | PP, PVC , PE Etc. | Noisy: | No Noisy |
| High Light: | 140MM Automatic Bag Slitter,1000kg bag slitter,304L Automatic Bag Slitter |
||
Product Description

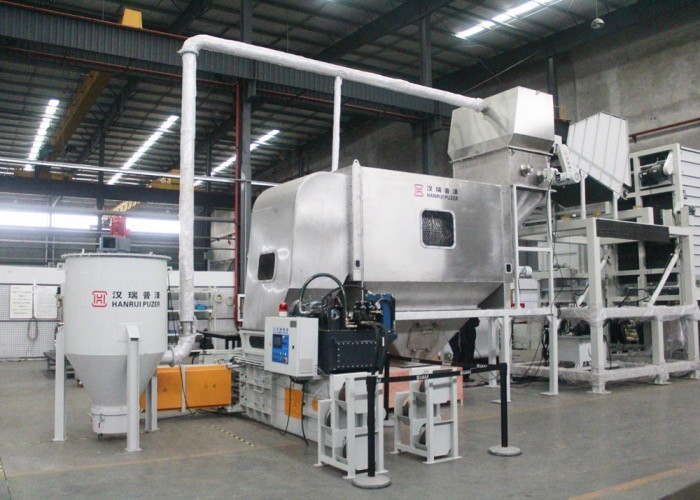

Sacked raw material automatic unpacking and feeding system solutions
Replacement of traditional manual bag unpacking
Improve the dust in the working environment
Achieve automation, intelligent, standardized production
Provide complete sets of automatic and intelligent production equipment
Optional supporting functions and equipment
Six axis robot de- palletizing system, linear robot system,vacuum assisted lifting system
Three-dimensional vision recognition system
Material conveying system (air flow, mechanical)
Dust collecting system
Automatic waste bag collecting system
Pallet automatic recovery system
Weighing and dosing system
Material storage system
Metal detection system
| Bulk Bag Unloader | ||
| Technical parameters | Model | HGC1AP |
| Unloading Speed | Depends on your material | |
| Air consumption | 4m³/hr | |
| accessories | dust collector, hoist etc. | |
| Frame Material | Carbon steel, 304,304L / 316L stainless steel | |
| Power & Output | 3 phase 380V 50Hz,2.0KW | |
| Total weight | Depends on your material | |
| Machine Dimension | depends on working condition | |
Main parameters
◆Unpacking capacity: 2000 bags/ hour (maximum).
◆Wide range of unpacking: 0.1kg ~ 70kg/ bags
◆Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.
◆Material loss rate: 1/1000 ~ 1/10000
◆Dust emission concentration: 1mg/m3~30mg/m3
◆Dust collection efficiency: 99.9% ~99.999%
◆Minimum dust particle size: 0.1um
Unpackable materials:
PP, PE, PVC, sodium carbonate, graphite, carbon black, calcium carbonate, caprolactam, washing powder, quartz sand, glucose, starch, white granulated sugar, protein powder, salt, soybean, urea, ammonium bicarbonate, ammonium nitrate, sodium nitrate, lithium carbonate, titanium dioxide, gypsum, BAC, active carbon, washing powder, bleaching powder and other solid bulk materials (powder, particle, sheet, etc.).
Why choose us
1. Hanrui can supply you better solutions for small bag emptying
2. Our solution can achieve automation, intelligent, standardized production
3. Hanrui can provide complete sets of automatic and intelligent production equipment.
