Anti Blow Out Stem 300LB Wafer Lug Butterfly Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: ply wood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000 sets /year

Detail Information

Material: SS304, SS316, SS316L, Q235, Cast Iron Working Pressure: As The Product
Driving Method: Manual, Pneumatic, Electric Etc. Applicable Media: Solid Material ,gas, Liquid
Working Temperature: -20-200℃/≤500℃ MOQ: 1 SET
Package Type: Stretch Film/ Plywood Delivery Type: As You Required
High Light:

300LB Wafer Lug Butterfly Valve

,

Q235 wafer style butterfly valve

,

SS304L wafer lug butterfly valve

Product Description

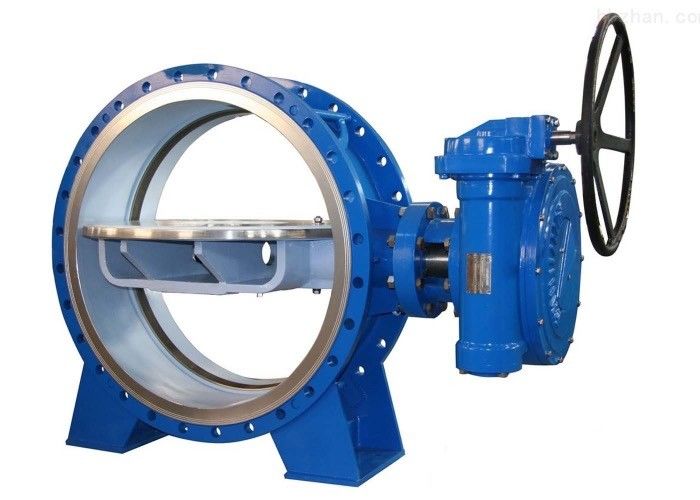

Wafer/Lug/Flange butterfly valve/High quality butterfly valve with manual wheel





Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.



Size Range: 2"~40"(DN50~DN1000)

Pressure: PN10, Class125

Body Materials: SS304, SS316, SS316L, Q235, cast iron

Seat Materials: NBR, EPDM, FPM

Disc Materials: SS304, SS316, SS316L, Q235, cast iron

Stem Materials: SS416, SS304, SS316

End Connection: flange

Operate: Manual, Worm gear, Pneumatic, Electric-Motorized

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

UPVC/CPVC/PPR butterfly valve Features

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Low Friction Body Seat

Zero Leakage

Standard Test:



Main performance parameters:

Main Size DN50-DN1000(2''-40'')
Nominal Pressure 150LB, 300LB, PN1.0MPa,pn1.6mpA, PN2.0MPa
Working Temperature -20℃-200℃/≤500℃
Main Material SS304,SS304L,SS316L, WCB etc.
Connection method Flange/wafer type
Driving Method Pneumatic/manual /worm gear /pneumatic driving with manual or electricity
Applicable Medium Solid materials (powder/particles, powders or mixtures etc. ), gas, liquid



Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Quality Control:

1. We have more than 150 body moulds of butterfly vavle for you to choose!

2. Each vavle is taken for two times test pressure before leave factory!

3. Every valve has 24 months guarantee period.

4. MOQ:1 Piece,it is up to which size clients



FRQ questions:

1. Can we choose the material of the butterfly valve?

Yes, for material, you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well, such as material name , bulk density, particle size, material flow ability etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
