Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hanrui |
Certification: | CE |
Model Number: | DN50-1000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 |
Price: | negotiable |
Packaging Details: | ply wood |
Delivery Time: | 4-8 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 3000 sets /year |
Detail Information |
|||
Material: | SS304, SS316, SS316L, Q235, Cast Iron | Working Pressure: | As The Product |
---|---|---|---|
Driving Method: | Manual, Pneumatic, Electric Etc. | Applicable Media: | Solid Material ,gas, Liquid |
Working Temperature: | -20-200℃/≤500℃ | Applicable Industry: | Food, Medicine, Chemical Etc. |
Nominal Pressure: | 150LB, 300LB, PN1.0MPa, PN1.6MPa Etc. | Connection Type: | Flange Type /wafer Type |
High Light: | 300LB manual butterfly valve,SS304 Manual Butterfly Valve,150LB hand operated butterfly valve |
Product Description

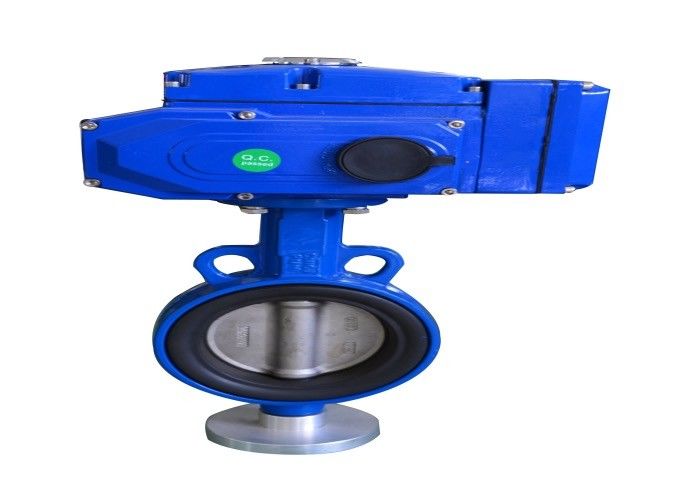

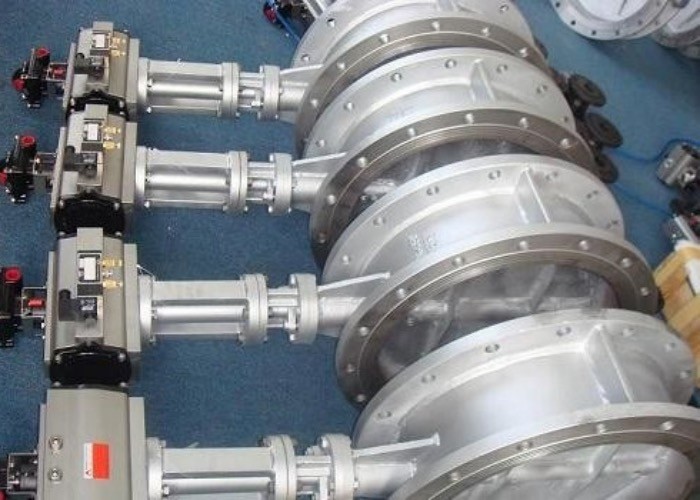

Butterfly Valves Wafer Gear Type Hand Manual Butterfly Large Size Butterfly Valve
Quality Control:
1. We have more than 150 body moulds of butterfly vavle for you to choose!
2. Each vavle is taken for two times test pressure before leave factory!
3. Every valve has 24 months guarantee period.
4. MOQ:1 Piece,it is up to which size clients
Size Range: 2"~40"(DN50~DN1000)
Pressure: PN10, Class125
Body Materials: SS304, SS316, SS316L, Q235, cast iron
Seat Materials: NBR, EPDM, FPM
Disc Materials: SS304, SS316, SS316L, Q235, cast iron
Stem Materials: SS416, SS304, SS316
End Connection: flange
Operate: Manual, Worm gear, Pneumatic, Electric-Motorized
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
UPVC/CPVC/PPR butterfly valve Features
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Low Friction Body Seat
Zero Leakage
Standard Test:
Main performance parameters:
Main Size | DN50-DN1000(2''-40'') |
Nominal Pressure | 150LB, 300LB, PN1.0MPa,pn1.6mpA, PN2.0MPa |
Working Temperature | -20℃-200℃/≤500℃ |
Main Material | SS304,SS304L,SS316L, WCB etc. |
Connection method | Flange/wafer type |
Driving Method | Pneumatic/manual /worm gear /pneumatic driving with manual or electricity |
Applicable Medium | Solid materials (powder/particles, powders or mixtures etc. ), gas, liquid |
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Necessary information when order:
1. Location: indoor or outdoor
2. Kindly provide the installment position and the conveying distance
3. Capacity(KG/H), and remark the ration conveying or variable conveying
4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics
5. Flange standard and flange dimension
6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
About us
Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.
The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.
FRQ questions
1. Can we choose the material of the equipment ?
Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .
2. What should we supply you when we need to select a proper size ?
You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.
3. What is other information we need to supply before get a quotation?
We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .
4. Can we choose the brand of the motor & reducer ?
Yes , you can select motor and reducer brand according to your own requirement.
