Bulk Alloy Powder Material 500kg Bag Dump Stations

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: ISO9001/iso14001
Model Number: HGB8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 800 sets/year

Detail Information

Material: SS304, SS316, SS316L, Q235 Accessories: Dust Collector/bag Cutting Machine Etc.
Structure: Welded Steel Struction Certification: CE/ISO9001/ISO14001
Maxim Capacity: Up To 20T Electrical Equipment: Simens, Schneider, Nord Etc.
Applicable Material: Powder/flakes/mixers Package Type: Stretch Film/plywood
High Light:

20ton Bag Dump Stations

,

500kg Bag Dump Stations

,

SS304 dust free feeding station

Product Description

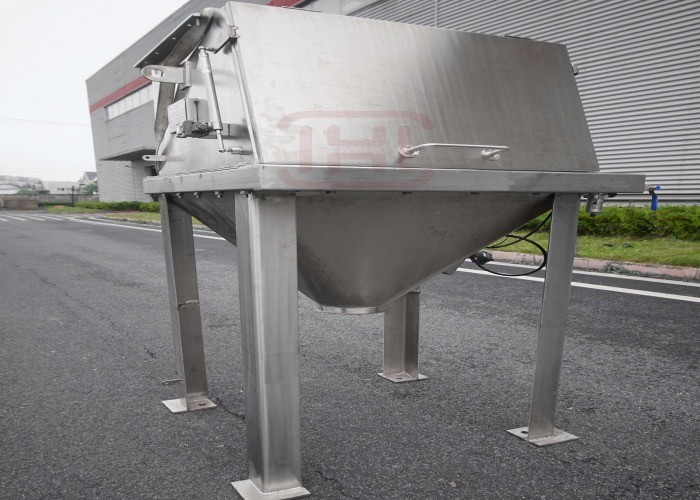

Bulk alloy powder material bag dump dust free feeding station





Hanrui Puzer is professional as one of the leading semi automatic bag dump station manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy semi automatic bag dump station at best price with us. We will offer you the greatest after-sales service and fast delivery.



Bag dump station called manual bag opener or bag emptying. Its filter system is a self-contained,compact system.The system eliminates dust by recapturing particles and returning them to the hopper .



Features:

Welded steel construction.

The construction is compact and beautiful in design.

Available with de-dusting filter equipment or centralized dust suction.

Hoppers with different capacity volumes.

The height of supporting legs can be adjusted.

Accessories for connection of waste Bag Compactor.

Accessories for connection of automatic bag cutting mechanism.





The operator puts the bag on the support and pushes it into the grille. Then he slits the bag with a vertical cut and shakes it unt仆empty. The bag content may be discharged through a hopper into the feeding device. The built—in fan can recycle the dusty gas caused during the course of bag unpacking. Automatic pulse back blow dust collector will clear the dust at a regular time. The empty bag can be sent to the optional waste bag compactor to ensure the site in clean environment.

echnical parameters Model HGB8
Unloading Speed 10-20 bag/h
Air consumption depends on your working condition
Electric Chain Block Speed 10.05m/min
Frame Material Carbon steel, 304,304L / 316L stainless steel etc.
Power & Output 3 phase 380V 50Hz
Total weight depends on material you choose
package stretch film / plywood



Bulk Alloy Powder Material 500kg Bag Dump Stations 0



FRQ questions:

1. Can we choose the material of the bag opener?

Yes, for material, you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well, such as material name , bulk density, particle size, material flow ability etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer?

Yes , you can select motor & reducer brand according to your own requirement.
