China Solid Conveying System manufacturer

PTFE Sinterplate Filter Elements Dust Collector Acid Resistance

Detail Information

High Light:

PTFE Sinterplate dust collector


acid resistance Sinterplate dust collector


Sinterplate industrial dust separator

Product Description

Hanrui Home >> Products >> Sinterplate dust collector >> Sinterplate dust collector

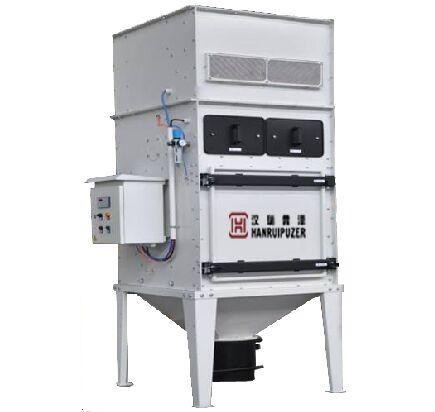

  • Product Name: Sinterplate dust collector
  • Product ID: HR06
  • Product details

Sinterplate dust collector is a kind of high efficiency collector which use sinterplate as filter elements. The sinterplate will not out of shape due to the rigid structureit has very long service life as there is no framework wear and tearthe service life is over 10 times than the bag filter in some working conditions. Due to the advanced treatment of the surfacethe aperture is small and uniformit will not adhere to dust with high water content as with hydrophobicityso it is the best choice to handle with the high water content and fibrous dust. Furthermore due to the precision manufacturer process keep the uniform micron size apertureso it could also handle with the ultrafine dust and high concentration dust. The inlet concentration of normal bag filter is less than 20g/mbut the inlet concentration of sinterplate dust collector can be 500 g/m. It can simplify the 2 class dust collection to 1 class dust collectionnot only with convenient technologybut also reduce the cost of energy consumption and narrow pipeline space and area.

Products features:

  • Because using PE and PTFE, resistance to acid and alkali.
  • PTFE coating into matrix form microporous structure, not easy to wear and tear.
  • Resistant to moisture and oil.
  • There is risk of product contamination cause by the fiber loss .
  • Washable.
  • Renew.
  • no silicon.
  • Provide antistatic type filter element which is used to collect the flammable and explosive dust.
  • Separable dust particle size > 0.1 m.
  • De-dust efficiency is 99.999%.
  • Service life is more than 10 years.
  • Filtration resistance stability during the whole life .
  • Excellent separate efficiency.
  • Applicable for high inlet concentration(≤500g/m3).
  • Filter efficiency: Emission concentration is less than 1mg/m3.
