China Solid Conveying System manufacturer

DN40 3 way diverter valve material flow direction special seal structure

Detail Information

High Light:

DN40 3 way diverter valve

,

material flow 3 way diverter valve

,

DN40 three way diverter valve

Product Description

Hanrui Home >> Products >> Diverter valve >> Diverter valve

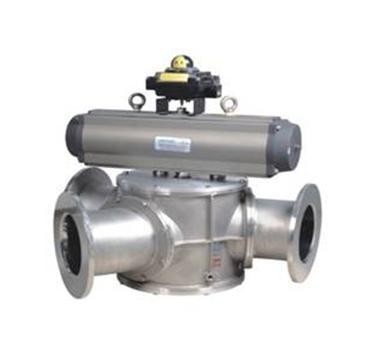

  • Product Name: Diverter valve
  • Product ID: HR11
  • Product details

Diverter valve is commonly called as 3-way direction change valves and dividing valves. It is special equipment for switching the material flow direction. The sealed construction is applied for outdoor environment.

Product features:

  • As per materials characteristics and conveying conditions, there are several configurable types; ball type; rotating plate type; barrel type and swing plate type.
  • The clients can freely select the suitable installation angle and direction as per the need of the conveying pipeline.
  • Under the pressure sealed condition, special seal structure can be equipped to fully satisfy with the application requirements.

Main Specifications

Structure Type

Ball Type

Barrel Type

Rotating Plate Type

Swing Plate Type

Piping Included Angle

45°

30°

22.30°

45°

60°

45°

30°

60°

90°

60°

45°

90°

120°

90°

60°

120°

Main Size

DN40 ~ 600

DN50 ~ 800

DN50 ~ 800

DN100~ 1000

Main Materials

SS304,SS304L,SS316,316L, WCB, QT500 and etc.

Hanrui Puzer Bulk Handling Technology (Shanghai) Co.,Ltd
