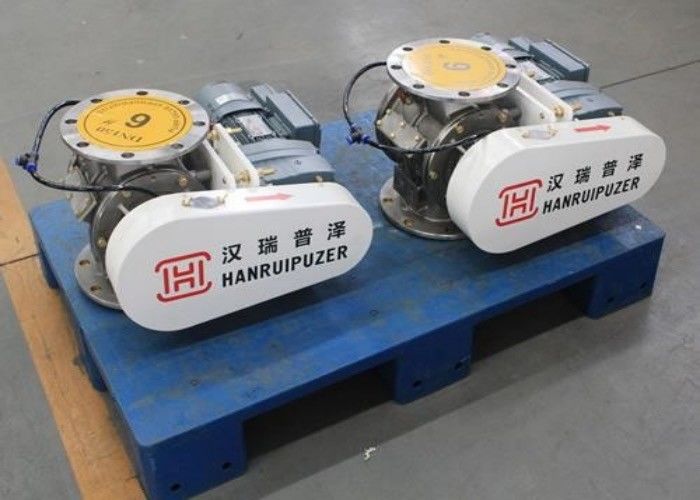

Pneumatic Conveying Type SS304 Rotary Airlock Feeder

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Material: SS304, SS316, Q235 Type: Cleaning /blow-through/high Pressure Etc.
Working Temperature: ATM/LP/MP/HP Applicable Medium: Powder/particles/flakes Etc.
Volum: 3.8L-600L Main Size: DN50-1000
Accessories: Solenoid Valve/shaft Seal Working Voltage: 220V/380V/690V Etc.
Highlight:

DN50 rotary feeder

,

600L rotary airlock feeder

,

SS304 Rotary Airlock Feeder

Product Description

SS304 material Pneumatic Conveying Type Rotary airlock feeder



Product details

Working pressure of pneumatic conveying type rotary valve: ATM/LP<0.1MPA,MP

Working temperature of pneumatic conveying type rotary valve: -20?~200?/=450?/=720?

Main size: DN25-1500

Main material: SS304, SS304L, SS316, SS316L, SS836L, WCB, QT500 and etc.

Flange Connection Rating: ANSI B16.5 150LB, GB, HG, SH or designated by client



Working pressure LP <0.6MPa MP. 1.0∽2.0MPa HP 2.0MPa~4.0MPa Super HP 4.0∽7MPa
Intensity testing pressure 0.9MPa 3.0MPa 6.0MPa 10.5MPa
Working temp. -20℃~850℃
Main spec. DN50∽1000
Conveying capacity 100KG∽80000kg/H
Power AC 380V ,AC 220V,AC110V,DC 24V or
Purge gas pressure 0.7∽6.5MPa
Flange standard ANSI B 16.5 150LB, GB, HG, SH,etc



Medium



Bulk solid material



Product advantages

1. Good sealing of pneumatic conveying type rotary valve

2. This pneumatic rotating feed valve has special designing of shell and impeller

3. Exhaust passage and exhaust nozzle which are designed for pressure balance inside the rotary feeder’s shell.

4. This type of rotary feeder has high working efficiency and has no material accumulation.

5. Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.



Product application

The pneumatic conveying type rotary valve is widely used in chemical industry, metallurgy, food, pharmacy and other areas. This pneumatic conveying rotary valve can not only convey powder, particle, and fibrous materials, such as PE, PP, PVC, cereals, cotton, and carbon black.

Hanrui Puzer is professional as one of the leading pneumatic conveying type rotary valve manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy pneumatic conveying type rotary valve at best price with us. We will offer you the greatest after-sales service and fast delivery.



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
