High Pressure 0.65Mpa 11KW Rotary Airlock Valve

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN100-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Reducer Brand: SEW /Nord Etc. Bearings: NSK, SKF Etc.
Volum: Can Be Designated Applicable Industry: Sticky Material
Power: 0.55-11KW Location: Outdoor/indoor
Working Voltage: 220V/380V Size: DN50-DN800
High Light:

DN800 rotary airlock valve

,

11KW Rotary Airlock Valve

,

0.65Mpa rotary feeder valve

Product Description

Flow through Rotary Valves Rotary Feeders/High pressure airlock feeder rotary valve



The rotatry type discharge valve also known as electric discharge valve, star discharge valve, etc. It consists of motor, tooth differenced planetary gear speed reducer (X) or nylon needle cycloid speed reducer (Z) and turn the dragon tripper.

It often applied to non sticky dry fine powder or granular materials. Such as raw powder, slag, coal powder, etc. Normally, they often installed in the following material library or ash bin. For block material, it can't be used due to the block material is easy to jam their impeller.

It is designed for storage, feeding powder engineering, quantitative feeding, ash discharge in air and dust removal equipment system. Bag filter and cyclone exports have star discharger (or star discharging valve). Ash hopper will filter the dust and dust collection system in airtight. It is suitable for powdery and granular materials, for the environmental protection, metallurgy, chemical, food and other industrial departments extensiveapplication.



Product features

● The special section at the inlet and outlet of the shell can effectively prevent the extrusion, blocking and shear crushing of the granular materials

● The exhaust channel and exhaust pipe interface for balancing pressure are designed in the shell, which can improve the working efficiency without material accumulation

● The shell and impeller are designed with special structure, which can transport special materials such as high hardness, high viscosity, high temperature, easy to generate static electricity and superfine

● Be able to transport food grade and drug grade materials



Main parameter

Maximum capacity: 500t / h

Allowable conveying material temperature: 650 ℃ (maximum)

Main size: DN50 ~ DN1500

Working pressure: normal pressure AP: ATM, low pressure LP: 0.15Mpa, medium pressure MP: 0.3MPa, high pressure HP: 0.65Mpa, ultra-high pressure: 1.0MPa ~ 0.7MPa, maximum working pressure: 10.0MPa

Main types: positive pressure transport, negative pressure transport, high pressure transport, transport after quick disassembly and cleaning, gravity quantitative discharge, etc



Why Choose Us?

  1. We provide OEM/ODM products and services according to international standard and customer requirements. We accept customer label / logo.
  2. We have R&D abilities to enhance product performance and quality according to customer’s demands.
  3. We can produce big size ball valves (DN600, DN800) which other companies might not be able to produce.
  4. We have Metal Seated rotary valves for high temperature media
  5. We have nearly 20 years of experience of manufacturing rotary valves.
  6. We have many certificates to guarantee and ensure product quality and safety, including ISO 9001: CE, ISO14001 etc.
  7. Any questions will be replied within 24 hours.

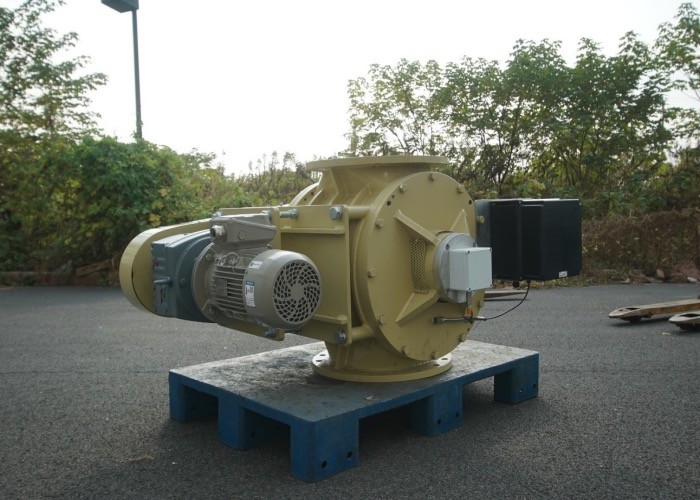

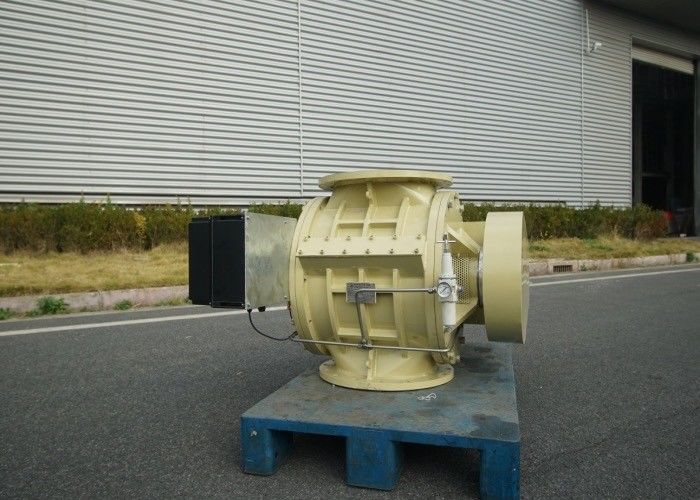

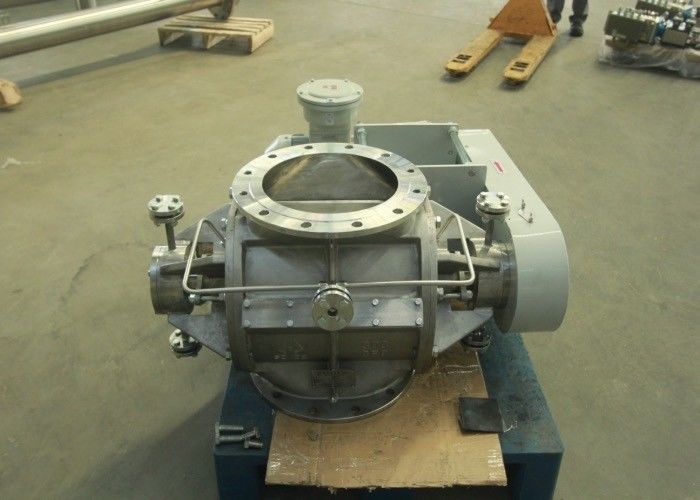

High Pressure 0.65Mpa 11KW Rotary Airlock Valve 0High Pressure 0.65Mpa 11KW Rotary Airlock Valve 1
