Anti Block Structure High Filling 3.8L Rate Rotary Feeder

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Filling Rate: Filling Rate Can Reach 100% Material: CF8/C.S Compound/QT500/HT500
Location: Indoor/outdoor Applicable Industry: Food/medical Industry
Volum: 3.8L≥V≤600L Packaging Type: Stretch Film /plywood
Shipping Method: By Shipping/air Etc. Optional Accessory: Solenoid Valve/shaft Seal Etc.
High Light:

DN25 Rotary Valve


3.8L Rate Rotary Feeder


HT500 rotary feeder

Product Description

Anti-block structure rotary feeders with high filling rate and long-term service life


shell and impeller of Hanrui's rotary valve with special structure design can convey very hard, high viscosity, high temperature, electrostatic and ultrafine materials. Its special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking. What is more, outboard bearing, oil seal, labyrinth, purge gas, packing, various seal structure. Wear resistant, high temperature resistant and high pressure resistant are all Hanrui's advantage.


Main parameters

working temperature  -20℃-200℃/ ≤450℃/ ≤720℃
main size  DN25-DN1000
main type  SELF-CLEANING
main materials SS304, SS304L, SS316, SS316L,SS836L,WCB,QT500 etc.
flange conn. Rating ANSI16.5 150LB,GB, HG, SH or designated by client
Appliable Medium Solid materials(powder, particles, powders/ particles mixtures, flakes etc. )


Product description

Rotary valve is called as rotary feeder or star shape feeder. This special equipment is applicable for unloading , packing , mixing, dedusting, metering, rotioning conveying of solid materials(powder, particles and its mixtures) conveying system. The working principle is by driving motor and reduction gears to turm equi-divided sructure impreller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of shell. Materials can be dischaged equably and continuously to the downstream unit according to the conveying system requirements.


Product advantages

1. Good sealing of pneumatic conveying type rotary valve

2. This cleaning type of  rotating feed valve has special designing of shell rotor.

3. The rotor of the valve can be cleaned automatically.

4. This type of rotary feeder has high working efficiency and has no material accumulation.

5. Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.

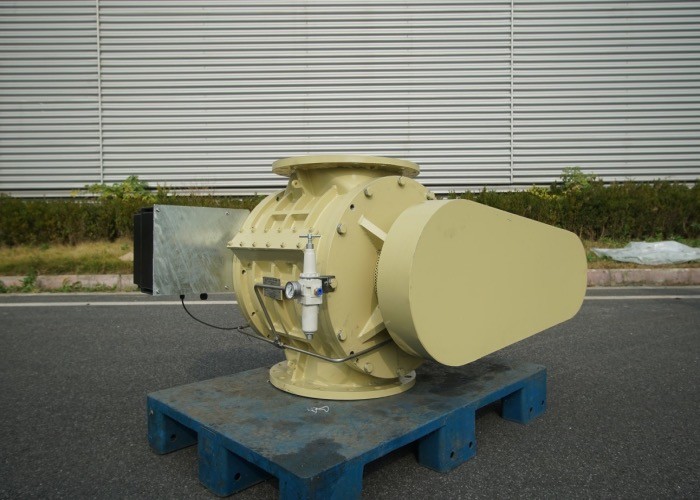

Anti Block Structure High Filling 3.8L Rate Rotary Feeder 0



  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.


About us

Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.


The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.

FRQ questions

1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.
