China Solid Conveying System manufacturer

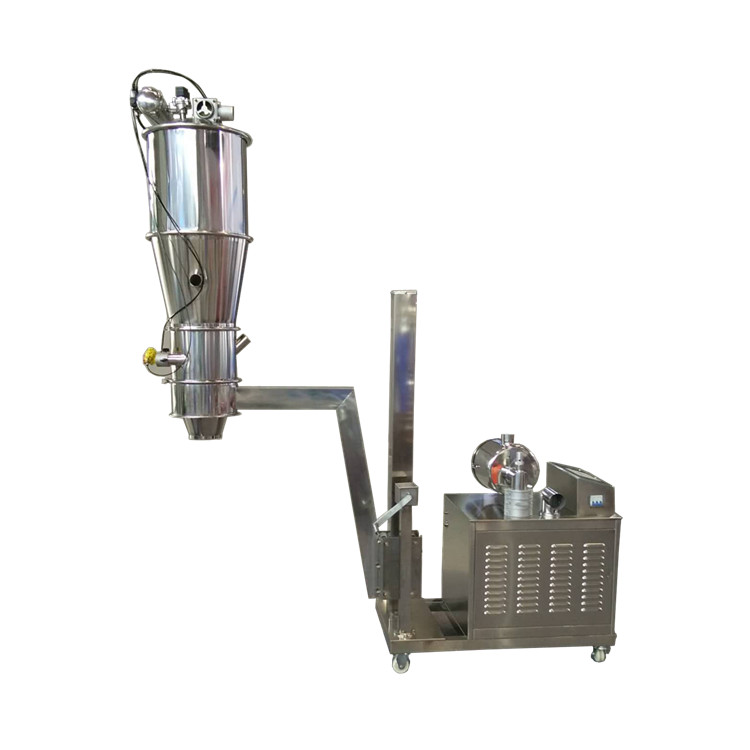

Dense Phase Pneumatic Conveying System Inflammable Material SS304

Product Details:
Place of Origin: China
Brand Name: hanrui
Certification: CE
Model Number: DN125-
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: ply wood/stretch film
Delivery Time: 4-8 weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets /year

Detail Information

Selected Material: SS304, SS316, Q235 Conveying Type: Dilute/dense Phase Conveying
Working Voltage: 380V, 400V, 690V Etc. Conveying Capacity: 50-100000kg/h
Max Distance: 1200M Accessories: Tubular Chain Conveyor/filter Etc.
Shipping Method: By Ship/by Air /by Land Etc. Packaging Type: Stretch Film /plywood
High Light:

Dense Phase Pneumatic Transport System

,

Inflammable Material Conveying System

,

SS304 Powder Conveying System

Product Description

Dense phase pressure pneumatic conveying system insert gas used for inflammable material



Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.

Pneumatic conveying system is widely used in chemical, fiber, food etc area, especially for some food and medicine industry, closed pipeline can meet hygeiene requirement. The features of this sytem is as follows:

Dense phase pressure conveying generally uses compressed air at above 0.1Mpa to push materials from a hopper and high pressure rotary valve or pressure vessel through a pipeline to the destination where the air and product are sparated by a filter or other systems. The product extrudes through the pipeline at low velocity , towards the destination.

Components and principle:

1. The system is combined with feed hopper, rotary valve or venturi devices, pipelines and receiving hopper and filter, the air supply is roots blower or centrifugal fan.

2. Material is poured into the feed hopper , then discharged to pipe through the rotary valve or venturi, the mixture of air and material moves from the pipe to receiving hopper resorting compressed air, the air is separated from the mixture on the top of receiving hopper and released.

3. The material in the pipelines moves at a suspended state.



specifications conveying speed conveying distance operation pressure SLR Pipe material
description 15-30M/S Max:800m Max:0.1MPa 3-15KG/KG SS304, Q235 etc.



About us


Hanrui PuZer Bulk Handling Technology (Shanghai) Co., Ltd. (originally called Shanghai Hanrui Machine Engineering Co., Ltd.), founded in 2002, is a scientific and technological enterprise integrating with design, fabrication, sales, installation, debugging and services. The assets of Hanrui company is over 80 million yuan. Now we have two plants in Songjiang District and Jinshan District. And we have the representative offices in Beijing, Nanjing, Chengdu and Toronto.



The main services of Hanrui company are in the trade of petroleum and chemical, chemical fiber, plastic resin, metallurgy, pharmacy, food, environmental protection and coal gasification industries. In the past thirteen years, our company has been committed to provide competitive solid bulk material handling system solutions and services, mainly includes the engineering general contracting of solid bulk material handling system and its related equipment manufacturing.


FRQ questions


1. Can we choose the material of the equipment ?

Yes, for material , you can choose SS304, SS316, SS316L , Q235 or other .

2. What should we supply you when we need to select a proper size ?

You need to let us know your detailed site condition, such as working temperature, working pressure etc. We need your material information as well , such as material name , bulk density, particle size, material flowablity etc.

3. What is other information we need to supply before get a quotation?

We need you give us the brand of the motor and reducer, whether is it explosition-proof or not ?By the way, we will send you a data sheet to collect information we need .

4. Can we choose the brand of the motor & reducer ?

Yes , you can select motor and reducer brand according to your own requirement.



Shipping

  1. We ship out your order by sea or air according to customer‘s request.
  2. We will try to ship out your order within 1 week after receiving your payment.
  3. We will inform you with the tracking number once your order has been sent out.
  4. We accept T/T bank transfer and other ways.
