HT500 Shell IP55 Star Feeder With Sealed Material

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN50-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Seal Material: PTFE/NBR/FG Shell Material: CF8/C.S Compound/QT500/HT500
Location: Indoor/outdoor Shell Cover: CF8/C.S Compound
Bearing Type: Direct Connect / Bearing Outboard IP Grade: IP55/IP65/etc.
Motor Brand: Can Be Selected Applicable Condition: Gravity/pneumatic
High Light:

IP55 Rotary Valve

,

HT500 Star feeder

,

IP65 Star feeder

Product Description

Has replacement liner brushing and impeller Star feeder with sealed material

Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.

Product description

Rotary valve is one of the most professional products in our company, it is called as rotary feeder or star shape feeder. This special equipment is applicable for unloading , packing , mixing, dedusting, metering, rotioning conveying of solid materials(powder, particles and its mixtures) conveying system.

The working principle is, by driving motor and reduction gears to turn equi-divided structure impeller inside the shell, then materials from upper silo of the shell or feeder are filled inside cavity of impeller, where materials are discharged along with impeller rotating to the bottom of the shell. Materials can be discharged equably and continuously to the downstream unit according to the conveying system requirements.

Hanrui Rotary Feeder has been awarded 6 national patens and been listed in Shanghai high-tech achievements transformation projects.

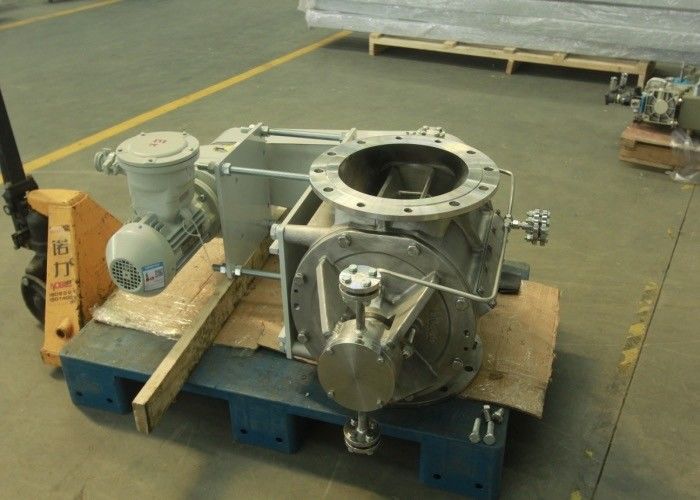

                                             HT500 Shell IP55 Star Feeder With Sealed Material 0





Product advantages

1.Outboard bearing design, combined with different seal structures including packing,oil seal , labyrinth , shaft gas seal , mechnical seal and magnetic seal.

2.The materials are specially treated with maximum  surface hardness up to HRC75, better wear-resistance and long-term service.

3.Selective design of replaceable liner brush and impeller, with the feature of easy and quick maintainence and economy.

4.Configuration is designed at high filling rate, the maximum rate up to 100%.

5.Special shell inlet/outlet section can effectively prevent particle material from extrusion, blocking and shear breaking.





Main parameters

working temperature  -20℃-200℃/ ≤450℃/ ≤720℃
main size  DN25-DN1000
main type  SELF-CLEANING
main materials SS304, SS304L, SS316, SS316L,SS836L,WCB,QT500 etc.
flange conn. Rating ANSI16.5 150LB,GB, HG, SH or designated by client
Appliable Medium Solid materials(powder, particles, powders/ particles mixtures, flakes etc. )

Necessary information when order:

1. Location: indoor or outdoor

2. Kindly provide the installment position and the conveying distance

3. Capacity(KG/H), and remark the ration conveying or variable conveying

4. Product characteristic: name, size, bulk density, temperature, stickness and other special characteristics

5. Flange standard and flange dimension

6. Please provide reducer motor working voltage, IP grade Ex-proof grade and other automation control requirements
