Carbon Steel 18RPM Rotary Feeder With Line Injector Venting Box

Product Details:
Place of Origin: China
Brand Name: Hanrui
Certification: CE
Model Number: DN100-DN1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plywood
Delivery Time: 6-8 weeks
Payment Terms: T/T, , Western Union
Supply Ability: 3000 sets/year

Detail Information

Accessories: Speed Switch/solenoid Valve Shell Material: CF8/C.S Compound/QT500/HT500
Capacity: 100kg-80000kg/H Power Supply: AC380V/AC220V/AC110V
Main Size: DN100-1000 Selected Type: Cleaning /straight Blow /high Pressure
Rotating Speed: 18-30 Rpm Ex Zone: Can Meet Your Requirement
High Light:

100kg/h rotary feeder valve

,

AC220V Rotary Feeder

,

18RPM Rotary Feeder

Product Description

Carbon steel rotary feeders provided with line injector & venting box



Product Features

  • Made from a casted body.
  • Having a sealed outboard bearing.
  • Packing optional body venting & purging packing glands.
  • Having a self-lubricating bearing.
  • Fall through type/blow through type.
  • Designed a pallet type for handling granules material to avoid jamming & breakage.
  • Designed for handling powder.
  • Able to operate in high-temperature applications.
  • MOC : CI/CS/HRS/SS304/SS316/SS316L.
  • Provided with line injector & venting box (on request)



Product description

Rotary valve is called as rotary feeder or star shape feeder. This special equipment is applicable for unloading , packing , mixing, dedusting, metering, rotioning conveying of solid materials(powder, particles and its mixtures) conveying system. The working principle is by driving motor and reduction gears to turm equi-divided sructure impreller inside the shell, then materials from upper silo of the shell or feeder are filled inside

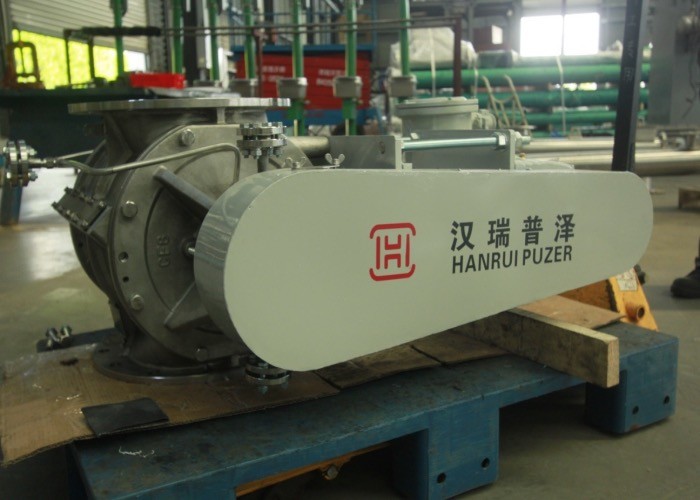

                                             Carbon Steel 18RPM Rotary Feeder With Line Injector Venting Box 0



cavity of impeller, where materials are discharged along with impeller rotating to the bottom of shell. Materials can be dischaged equably and continuously to the downstream unit according to the conveying system requirements.



Material of Main Parts

Parts name material name  material name
body CF8 C.S Compound QT500 HT500
Impeller 304SS C.S Compound C.S Compound C.S Compound
Shaft 304SS 25 25 25
Shenn cover  CF8 C.S Compound C.S Compound C.S Compound
Seal material  PTFE/NBR/FG PTFE/NBR/FG PTFE/NBR/FG PTFE/NBR/FG



Hanrui Puzer is a high-tech enterprise built in 2002 , we are a professional supplier for providing solid bulk material handling solutions, integrated with designing , manufacturing sales and EPC service . Our mission is dedicated to provide excellent solutions and services of handling solid bulk material in order to consistently create maximum value for customers.
